Детальное описание

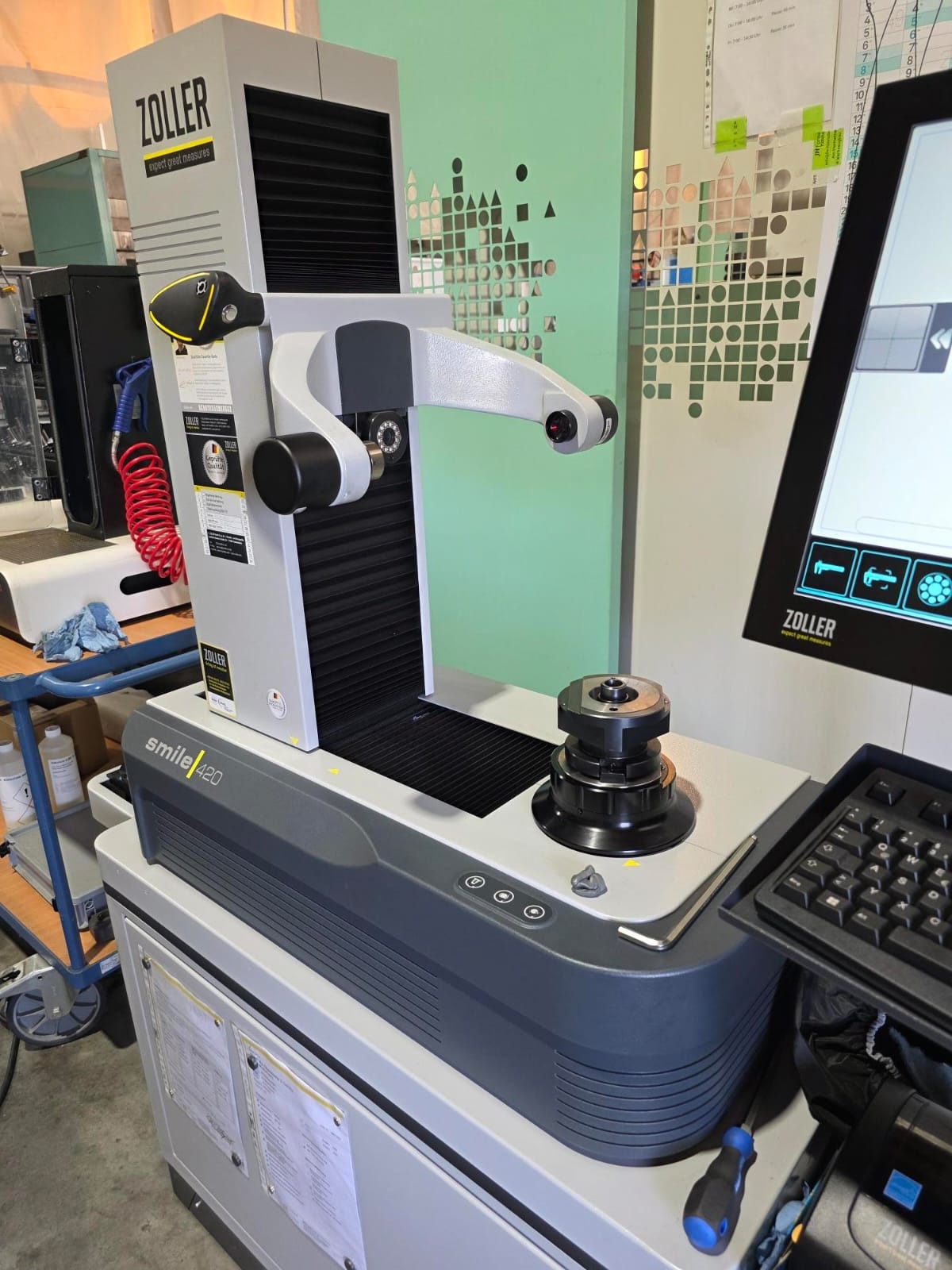

Zoller Smile 420
Reviewed on September 5, 2024 былы ТО
Z-axis travel: 420 mm
X-axis travel: 200 mm
Workpiece diameter: max. 420 mm
Workpiece length: max. 400 mm
Max. snap gauge diameter: d = 100 mm
Workpiece holder: SK 50 + SK40 adapter + HSK63 adapter + VDI 30 adapter
Tool weight: max. 10 kg
Repeatability: +/- 0.002 mm
Display accuracy: 0.001 mm
Concentricity: 0.005 mm
Power supply: 230 V / 50 Hz
Compressed air connection: approx. 6 bar
Dimensions W x D x H: 1300 x 625 x 1600 mm
Weight: approx. 200 kg
Color: silver-gray / anthracite
Suitable for manual and automatic measurement of all types of cutting tools and grinding wheel packages. The Zoller imaging and camera system enables fast, operator-independent measurement of all tool edges.
Accessories:

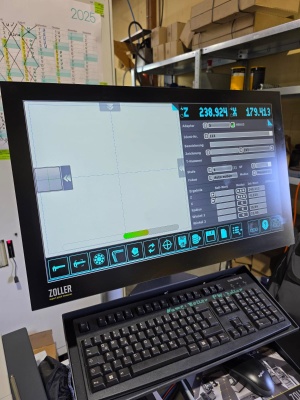

ZOLLER measuring device control "Pilot 4.0" panel PC with 24" multi-touch display
Industrial computer with Windows 10 64-bit operating system
High-precision spindle SK 50 (concentricity 0.002 mm, spindle brake)
Autofocus (CNC drive in the C-axis for operator-independent cutting edge focusing and automatic measurement of multi-edge tools)
Rotary encoder (ROD) for high-precision position determination in the C-axis
-Turn center measuring device/camera available or installed and fully functional.
Pilot 4 software

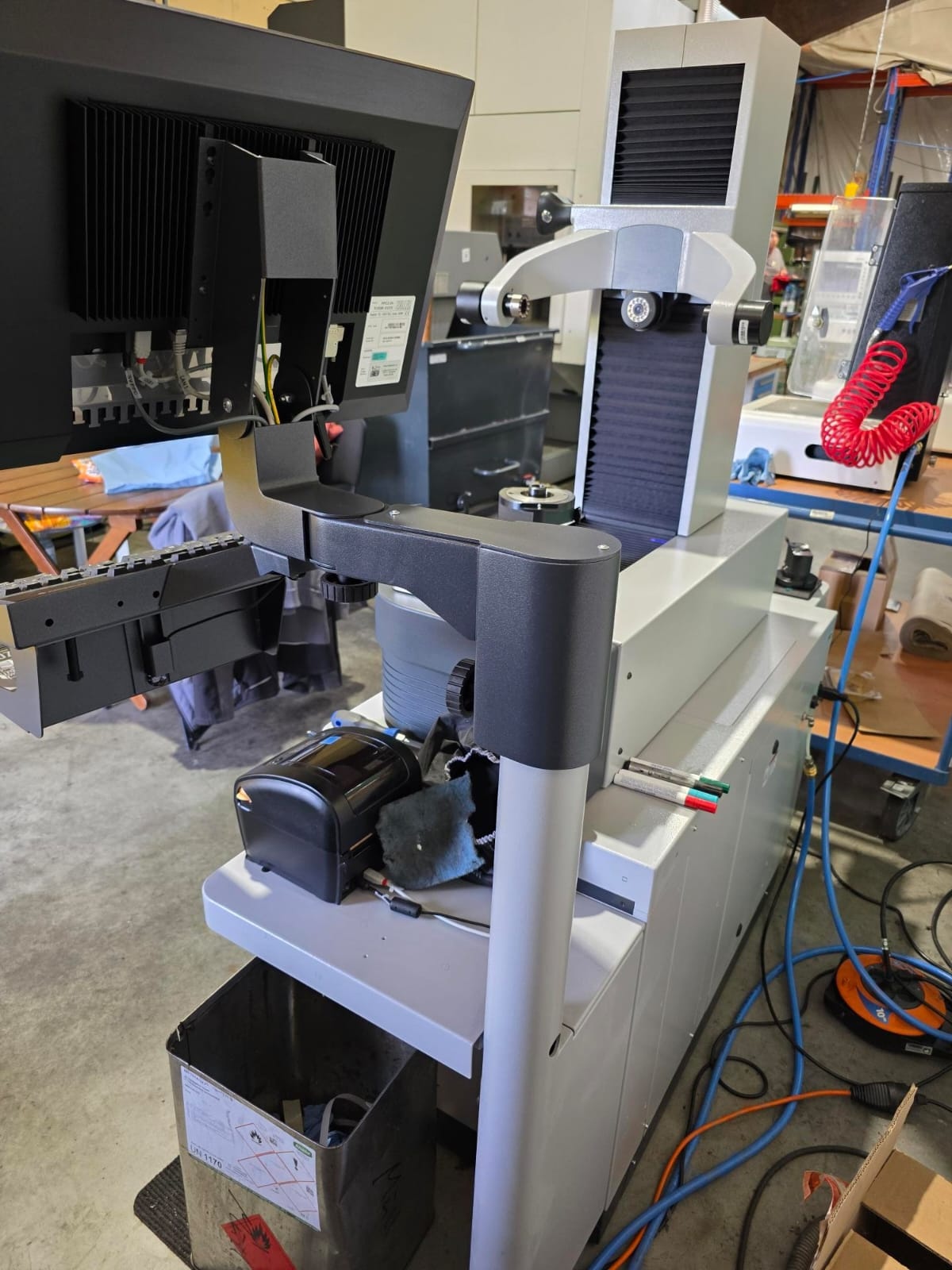

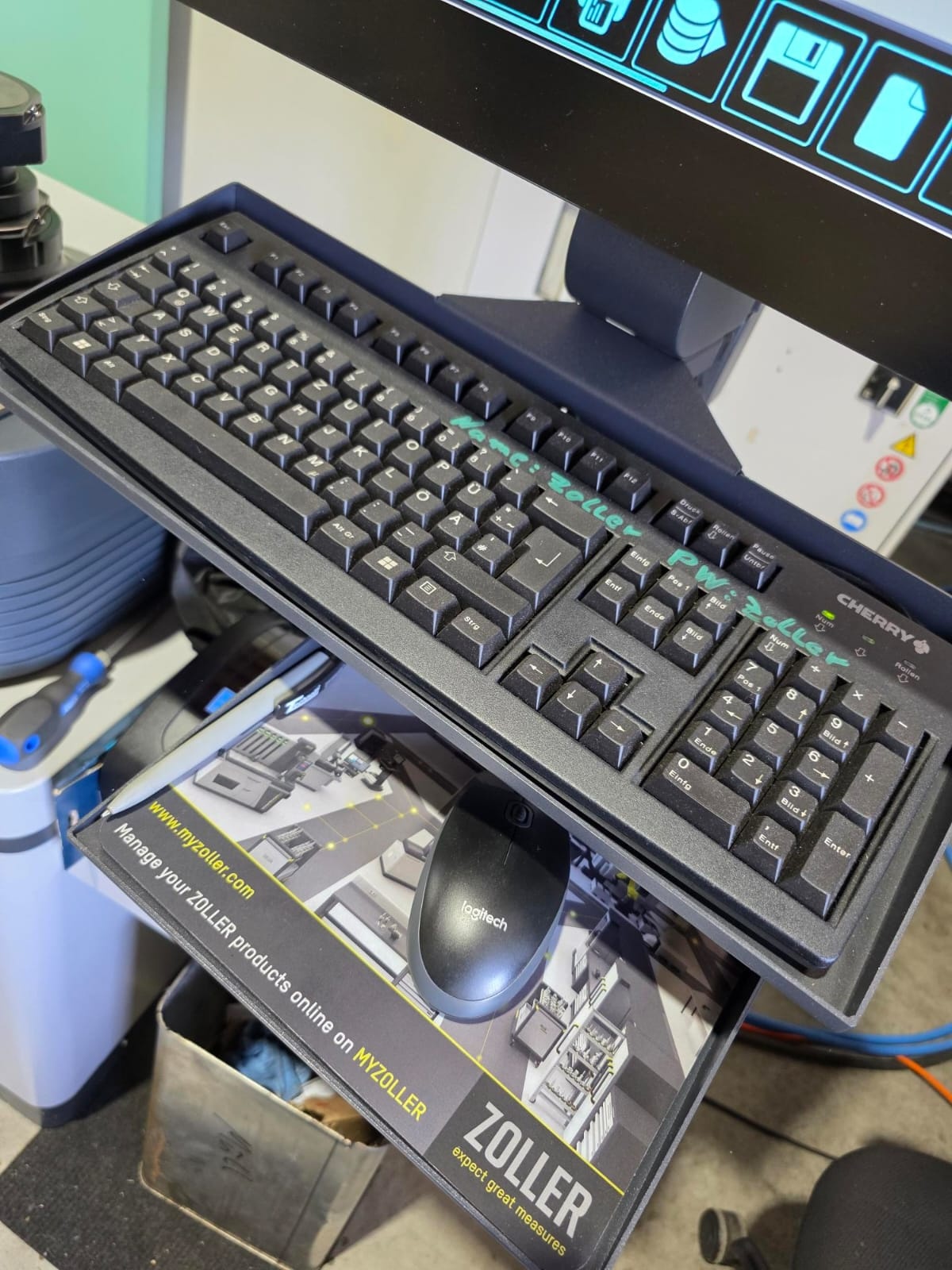

Monitor mount for Zoller measuring device control, mouse and keyboard tray
Under-table system
Maintenance unit

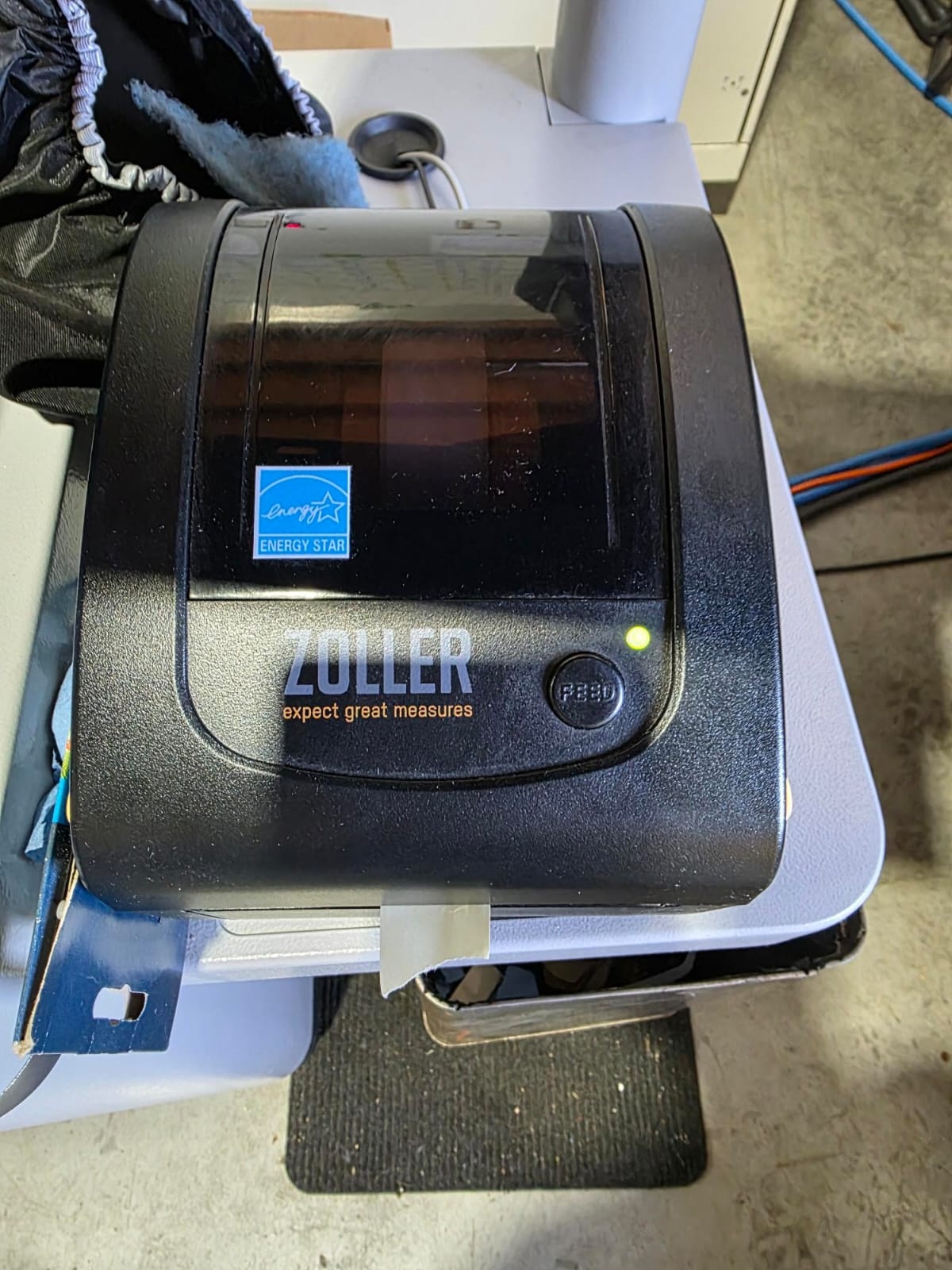

Thermal label printer
