Gallus EMS 430s-24 Б/У - Продам в Artern

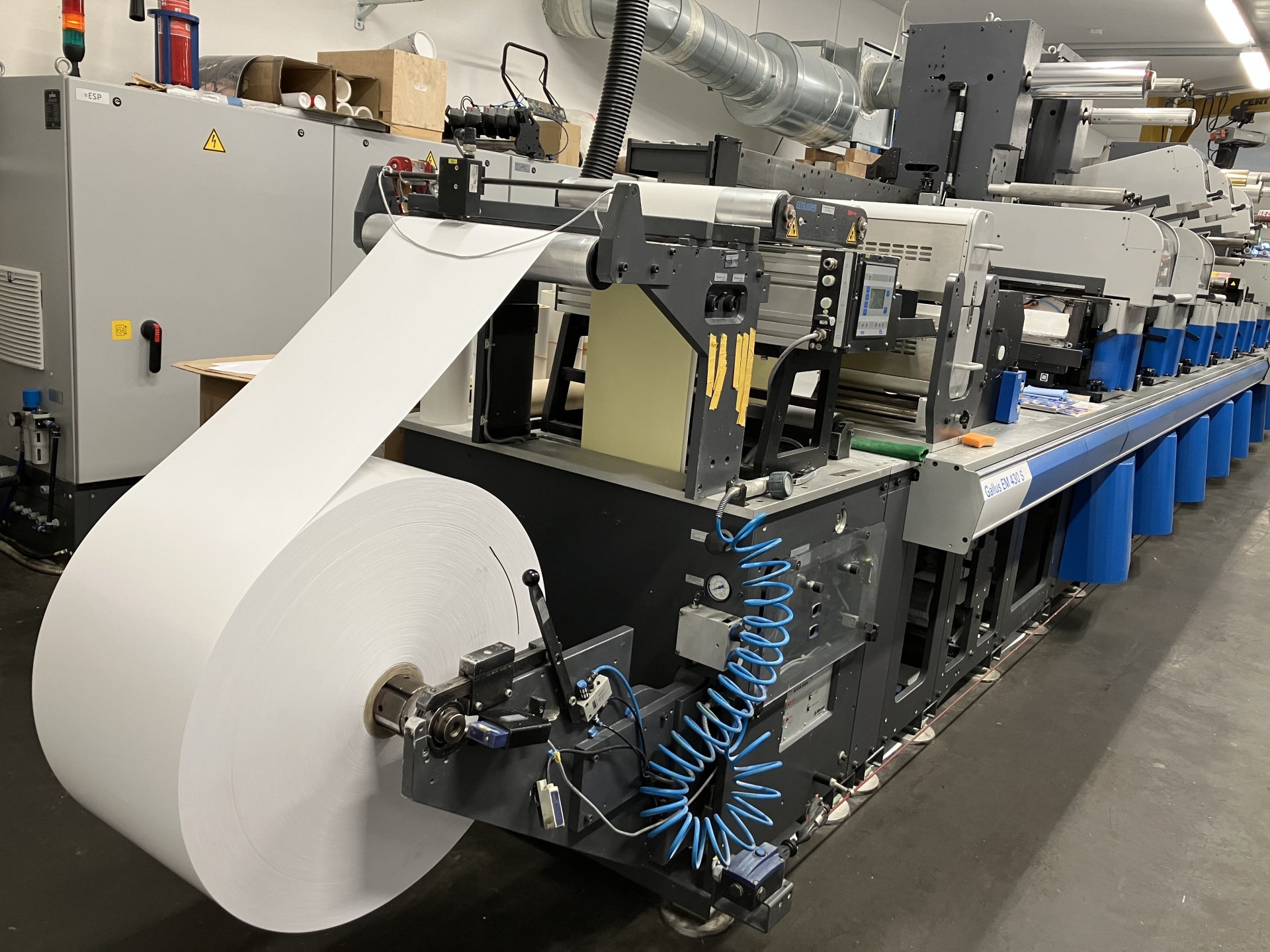

Gallus EMS430s-24 Servo driven Flexographic printing machine. Year:2012

Web width: min 215mm - max 433mm

Print width: max 430mm

Print formats: Z80 254mm – Z192 609,6mm

Material thickness: 30-450mic

Roll weight: max 500kg

Paper roll diameter: max 1250mm

Core diameter: 3“ (76,2mm)

Web speed: max 150m/min

·        8 UV printing units

·        2 rotary top loading die-cutting units

·        Waste shaft with additional pressure roller

·        GEW UV curing system

·        2 additional hot air curing units

·        Sensotec printing register system

·        Insetting system

·        Cooled anvil drums

·        2 rail-mounted cold foiling or laminating sections with interchangeable positions

Foil roll diameter: max 800mm

Foil roll weight: max 50kg

·        Rewinding unit

Roll diameter: max 800mm

Roll weight: max 300kg

·        Aditional Oil-heated rotary Hot-foil unit

·        Belt Conveyor for sheet output

·        Automatic sheet collection and stacking table/elevator

·        Splise recognition sensor

·        Web breakage sensor

·        End of the roll sensor

·        Erhardt+Leimer Web guiding system

·        TekNek web cleaning unit

·        Slitting knives

·        Rotary Embossing Cylinder

·        Aniloxes: 31pcs

2,2cm3/m2 – 1pc           2,9cm3/m2 – 4pcs    3,1cm3/m2 – 1pc     3,6cm3/m2–2pcs            4,2cm3/m2 – 2pcs    5,2cm3/m2 – 2pcs    6,2cm3/m2 – 3pcs    6,5cm3/m2 – 3pcs          7cm3/m2 – 2pcs       8,2cm3/m2 – 4pcs    9,2cm3/m2 – 1pc     10,2cm3/m2 – 1pc   12,4cm3/m2 – 1pc        14,3cm3/m2 -1pc     34,5cm3/m2 – 1pc   70cm3/m2 – 1pc                  GTT label XL– 1pc

·        Aluminum printing cylinders: ~550pcs

Z96 – 168pcs              Z99 – 30pcs        Z104 – 25pcs      Z107 – 39pcs      Z111 – 29pcs      Z113 – 4pcs

Z114 – 30pcs              Z118 – 26pcs      Z134 – 16pcs      Z138 – 24pcs      Z145 – 24pcs      Z170 – 105pcs

Z192 - 30pcs

·        Rotary magnetic die-cutting cylinders: 13pcs

Z96           Z99      Z104   Z107   Z111   Z114   Z118   Z134   Z138   Z145   Z160   Z170   Z192

·        Rotary cross-cutting cylinders:

Z96           Z160   Z170   Z192
