Продам WEINIG PFA 17 four-side planer Б/У в Lezno

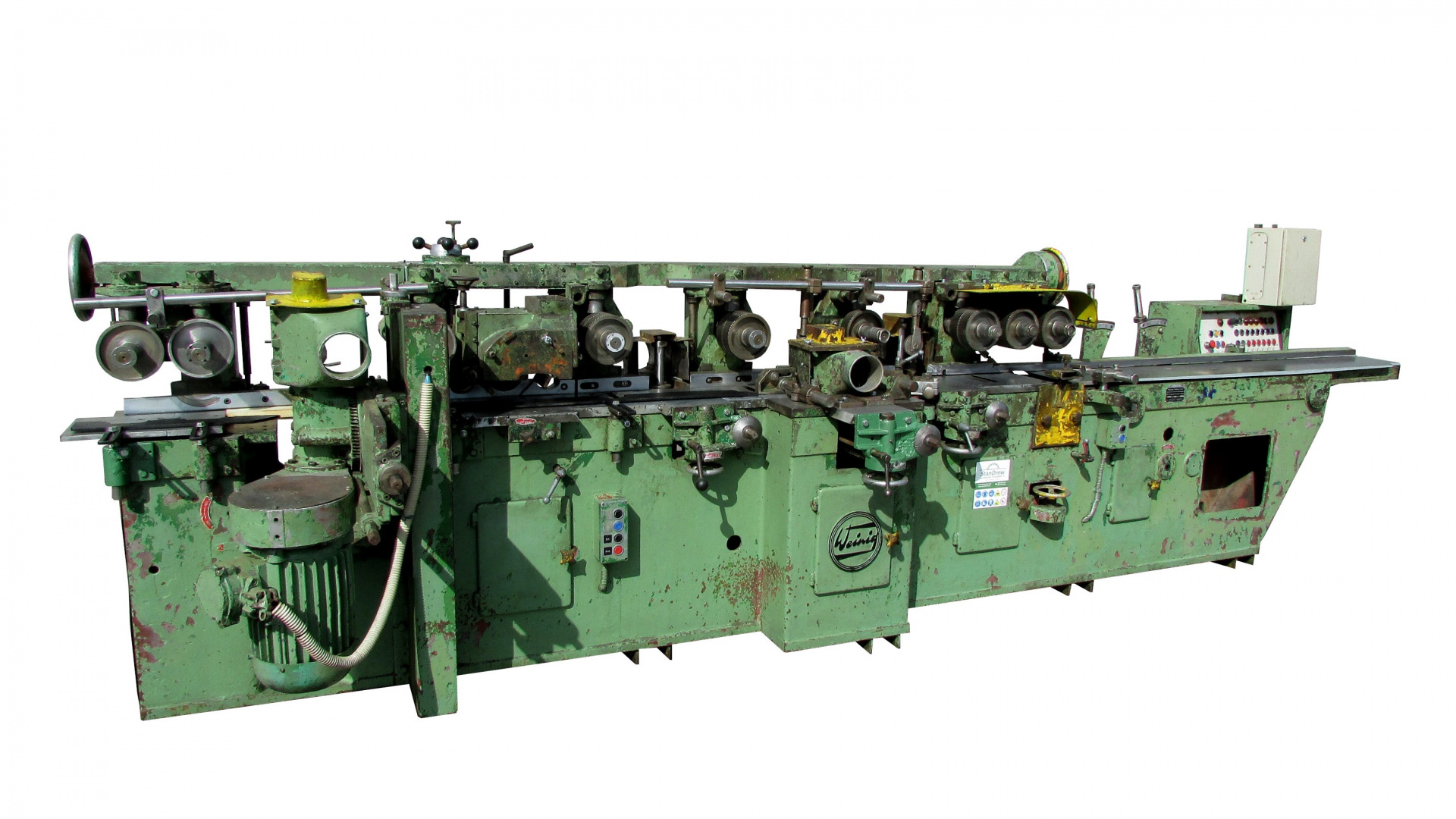

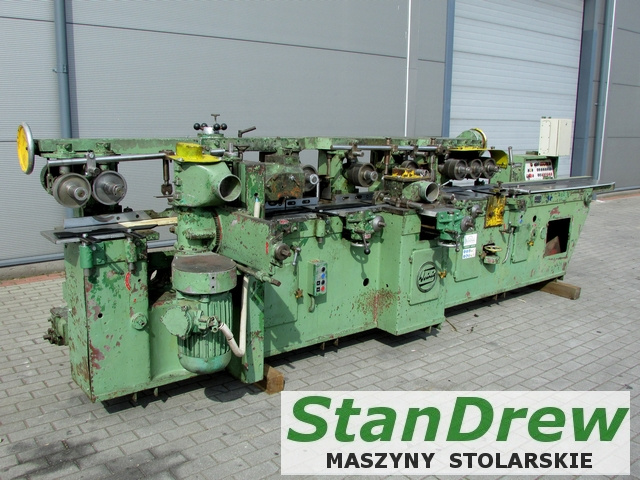

WEINIG PFA 17 four-side planer

– German production

– DTR

– last spindle adjustable 180°

TECHNICAL PARAMETERS:

planing width 170 mm

planing height 120 mm

rollers in the countertop

spindle diameter 35 mm

1 lower spindle 4 kW

2 right spindle 4 kW

3 left spindle 5.5 kW

4 right spindle 5.5 kW

5 upper spindle 4 kW

6 universal spindle 180°, 4 kW

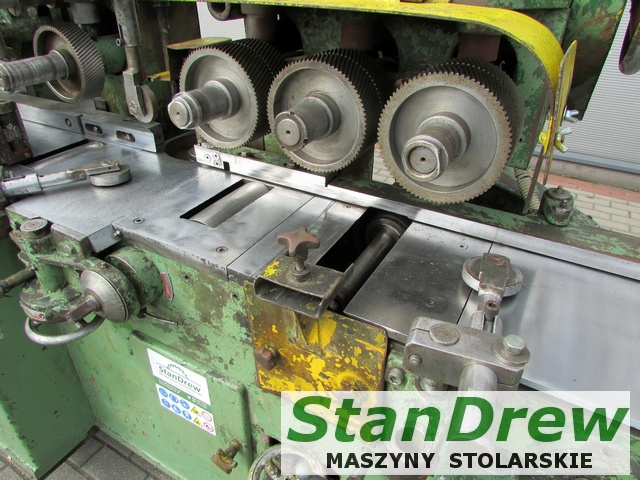

six upper pulling gear rollers

three upper smooth pulling rollers

three rollers in the counter

electric height adjustment of the upper head

electric roller height adjustment

feed motor power 2.2 kW

smooth regulation of the feed speed on the inverter

spigot diameter 5 x 120 mm

machine dimensions (length/width/height) 500 / 175 / 160 cm

weight 3000 kg
