Бобинарезательная машина JURMET MASTER 2 Б/У - Продам в Bremen

Equipment/machine description

Process:

Slitter rewinder

Name:

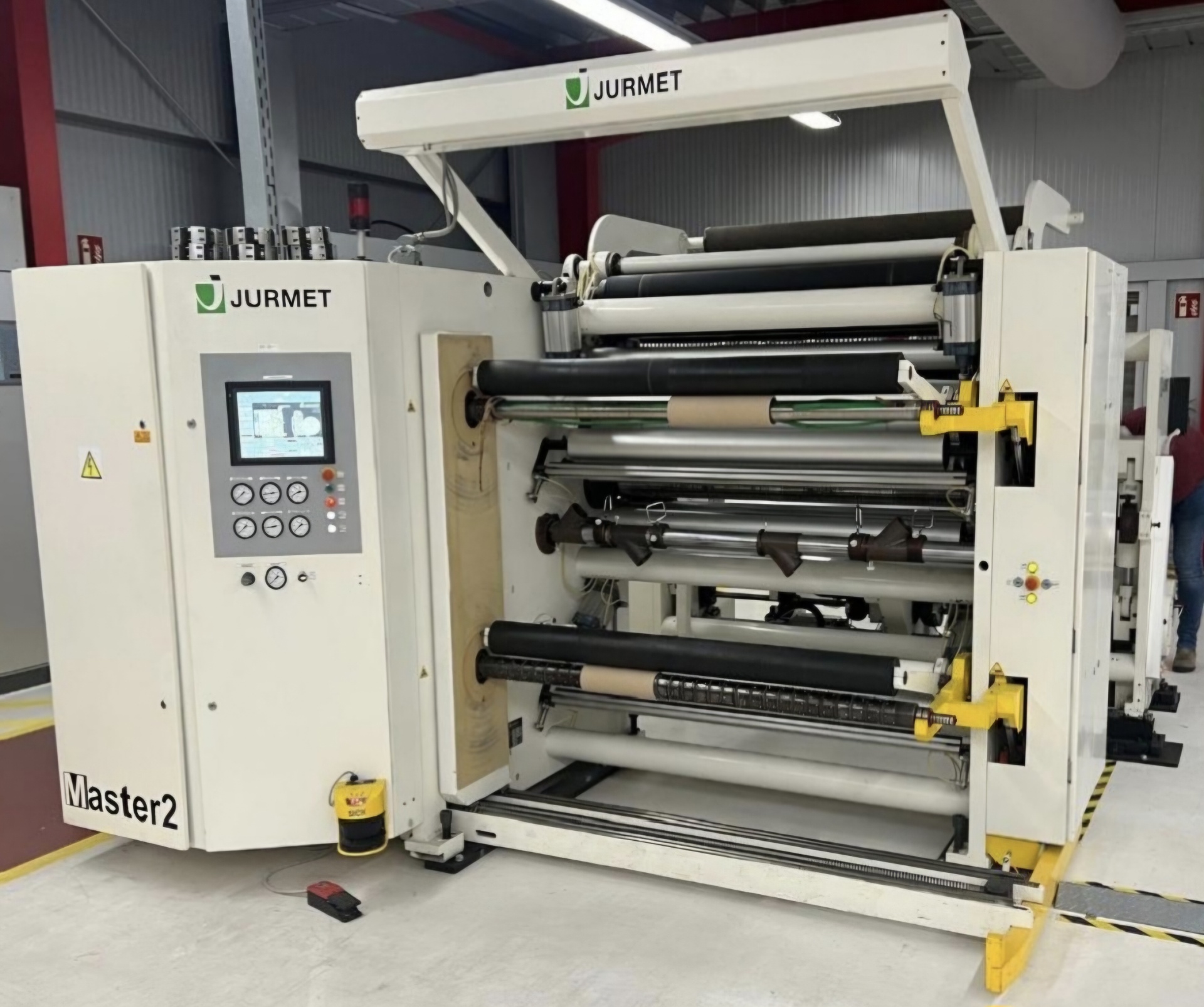

JURMET MASTER 2

Producer:

Jurmet

Production year :

2009

Hours worked:

~11.000 h

Technical specification

Materials:

Films OPP, PP, PS thickness from 14 to 100 µ

PET from 20 to 200 µ

Paper from 15 to 150 g/m2

Aluminium thickness from 15 to 60 µ

Paper from 15 to 150 g/m2

Laminates:

Paper + aluminium foil + PE from 15 to 150 g/m2

Max working speed:

700 m/min

Max Material width:

1300 mm

Max Material width:

300 mm

Unwinder max roll diameter:

1300 mm

Unwinder shaft diameter:

76 mm (3") and 152 mm (6")

Unwinder max roll weight:

2400 kg

Web tension control:

YES. Pneumatical

Splice table:

Yes. With pneumatical clamps and tape dispenser.

Web Guide:

Yes. Upgraded to Laser Sensor Keyence with new control panel. Automatic

Material Path:

Top bridge

Slitting unit:

Circular blades with pneumatical bottom knife shaft. With belt

Auto knife positioning:

Yes. Pneumatical positioning arm

Razor blades:

No. Available optionally.

NIP roller in slitting unit:

YES.

Banana roller in slitting unit:

YES. Pneumatical positioning arm

Trim blower:

YES.

Rewinder Double shaft:

76 mm (3") and 152 mm (6")

Rewinder friction rings shafts:

YES.

Rewinder Pressure arms:

YES. Pneumatical from top

Laser Corre positioning:

YES

Automatic rolls removing:

YES. Rolls moved on a tower

Rewinder roll max diameter:

800 mm

Rewinding min width:

50 mm

Rewinder roll max weight:

500 kg

Power Installed :

54 kW

Max power consumption:

33 kW

Dimensions (W x L x H):

3500 x 4300 x 2305 mm

Weight of unwinder

4540 kg

Weight rewind unit:

4520 kg
