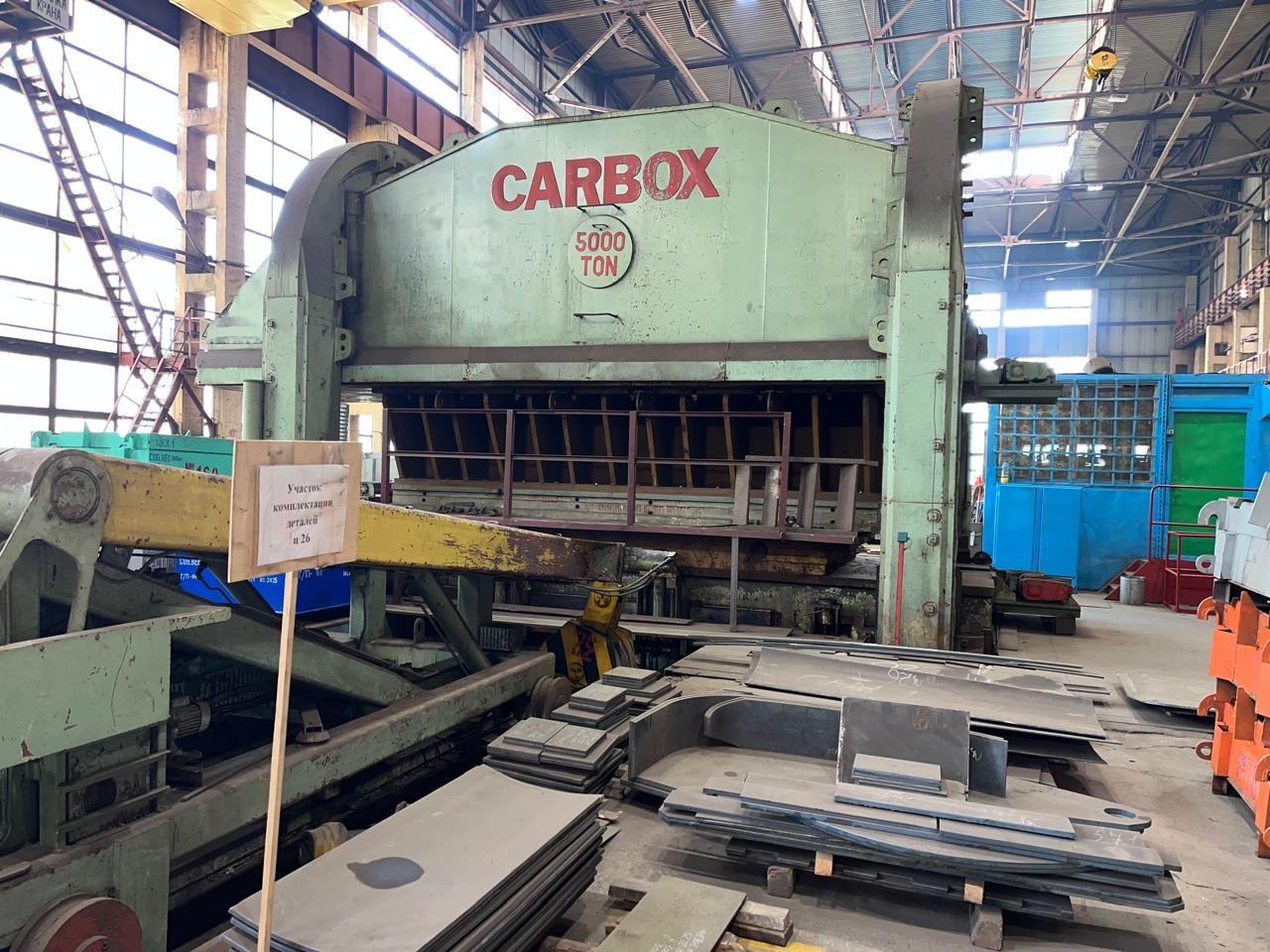

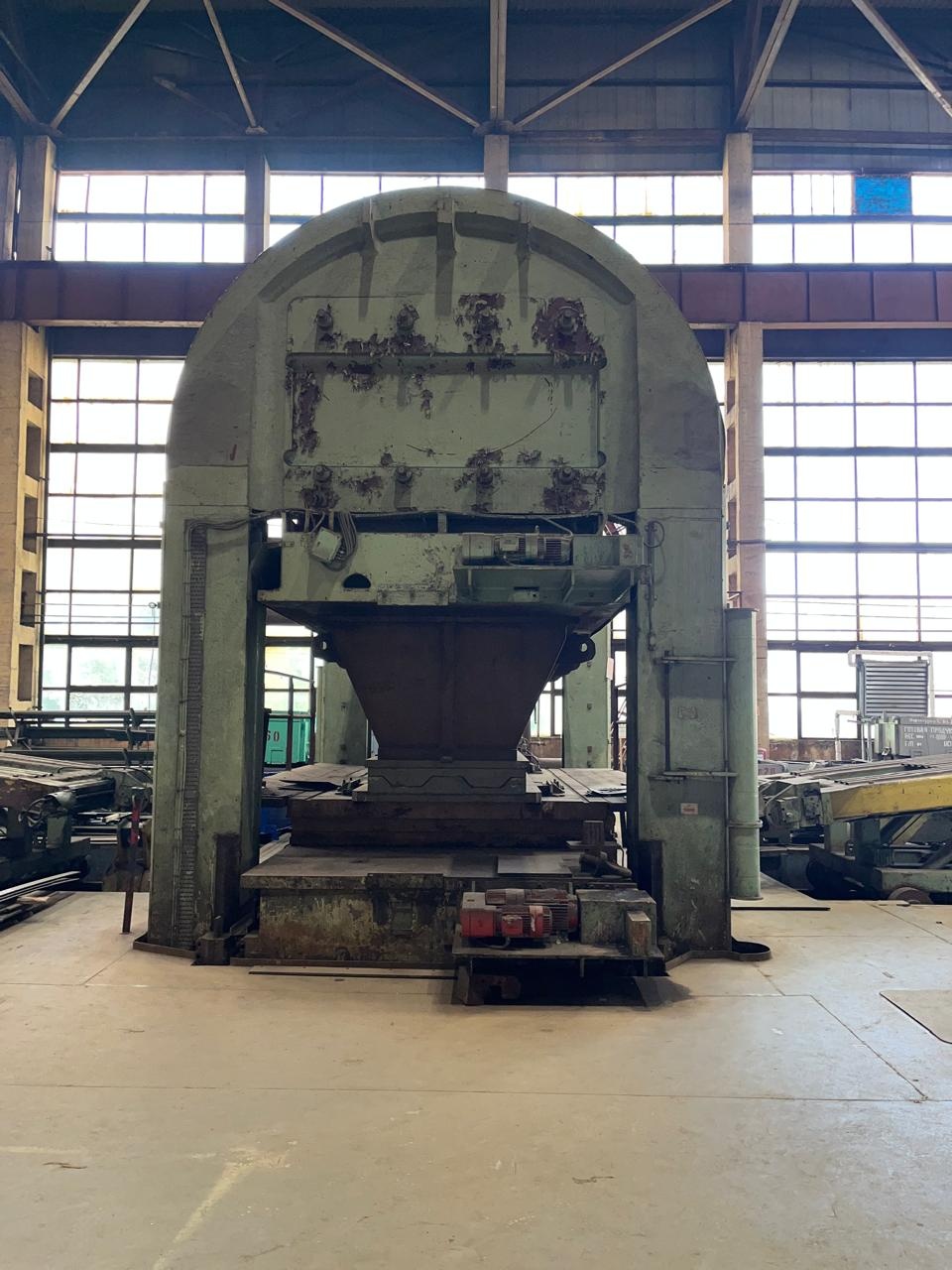

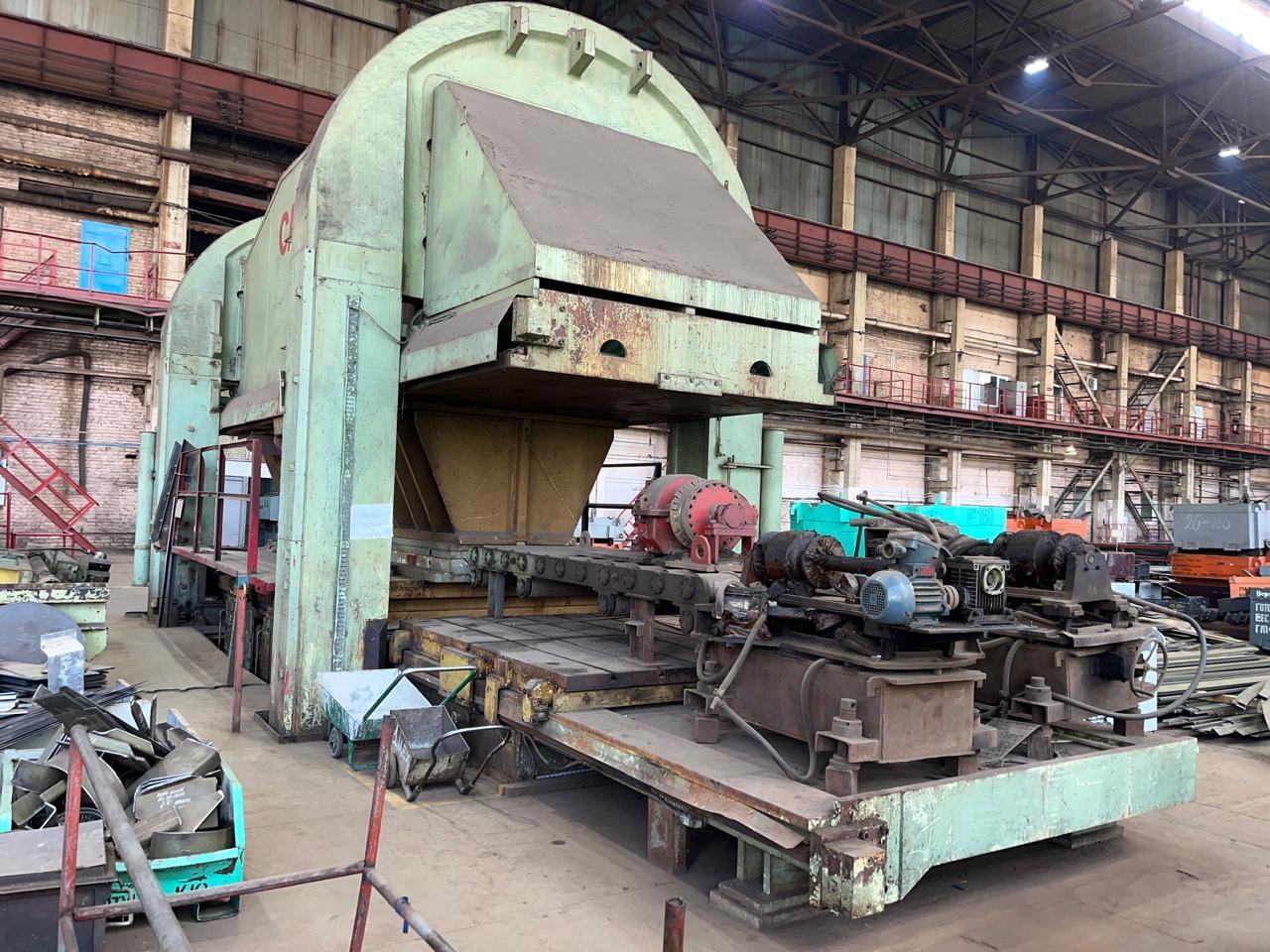

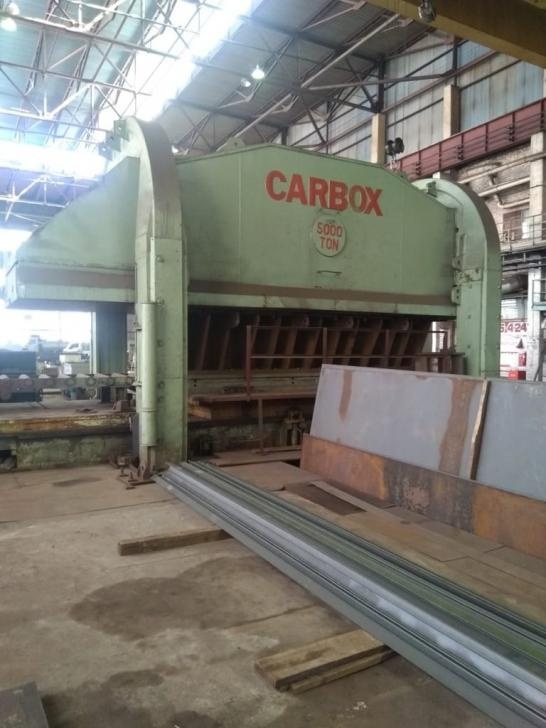

CARBOX hydraulic press 1982, 5000t force Б/У - Продам в Пензе

CARBOX hydraulic press 1982, 5000t force, in excellent condition, tested in operation, price negotiable, location: Far East, Russia

Pressing force in the middle of the portal: 5000 tons Pressing force on the pendant consoles: 1700 tons Piston stroke: 1500 mm Distance between the beams: 3000 mm Stroke speed at a load of 5000: 0-10 mm/s Stroke speed at full load: 0-5 mm/s Fast movement speed: 100 mm/s Return speed: 60 mm/s Distance between side frames (left to right): 6000 mm Distance between columns (front and back): 2800 mm Speed of the die plate: approx. 25/200 mm/s Die plate size: 2500x2500 mm Max. stamp weight on the plate: 15 tons thread: trapezoidal 65x8 mm (modified) Console projection above the side frame: 1500 mm Press weight (total): about 350 to
