5 осевой обрабатывающий центр MIKRON HPM 1350U Б/У - Продам в Cakovec

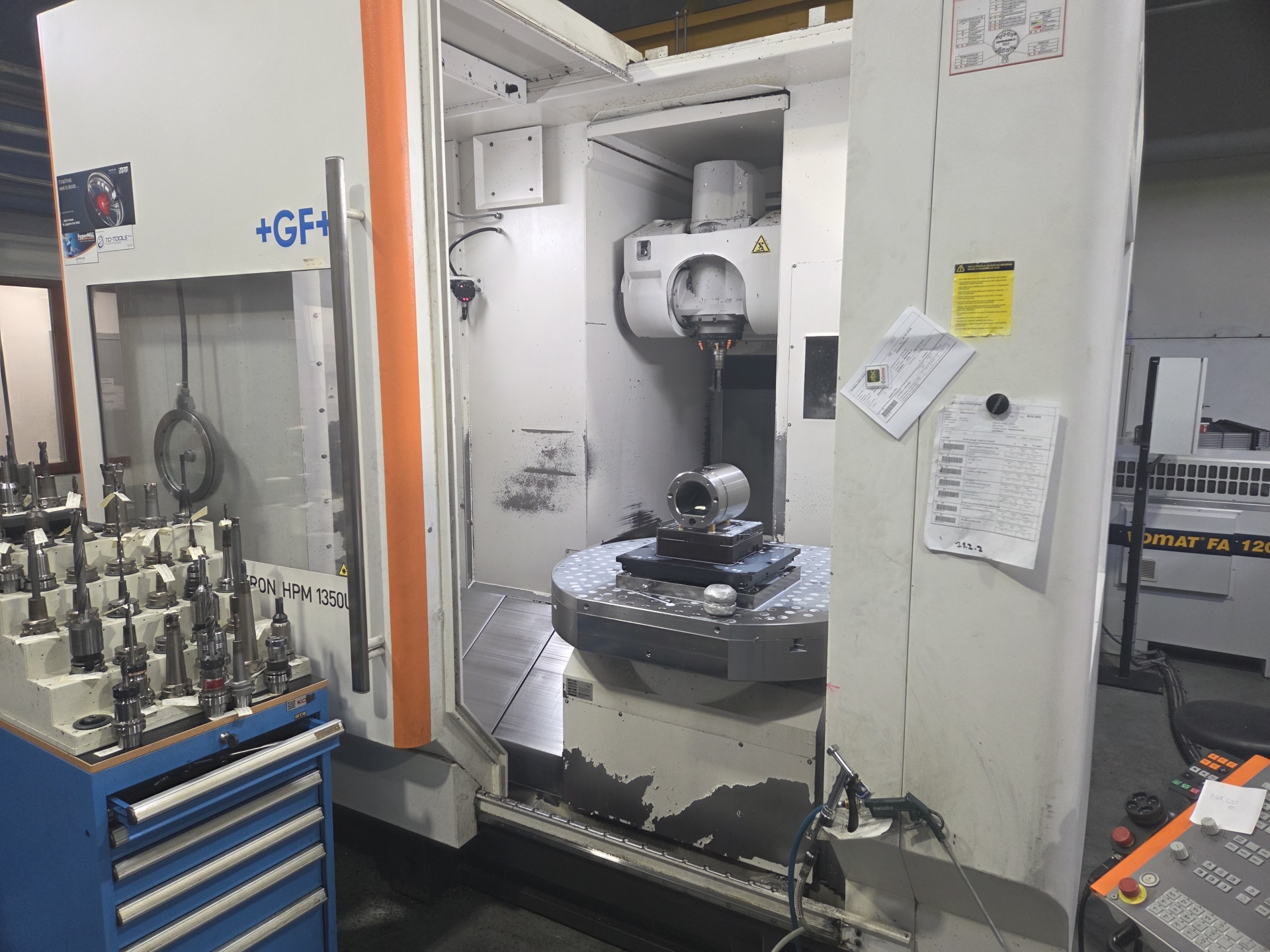

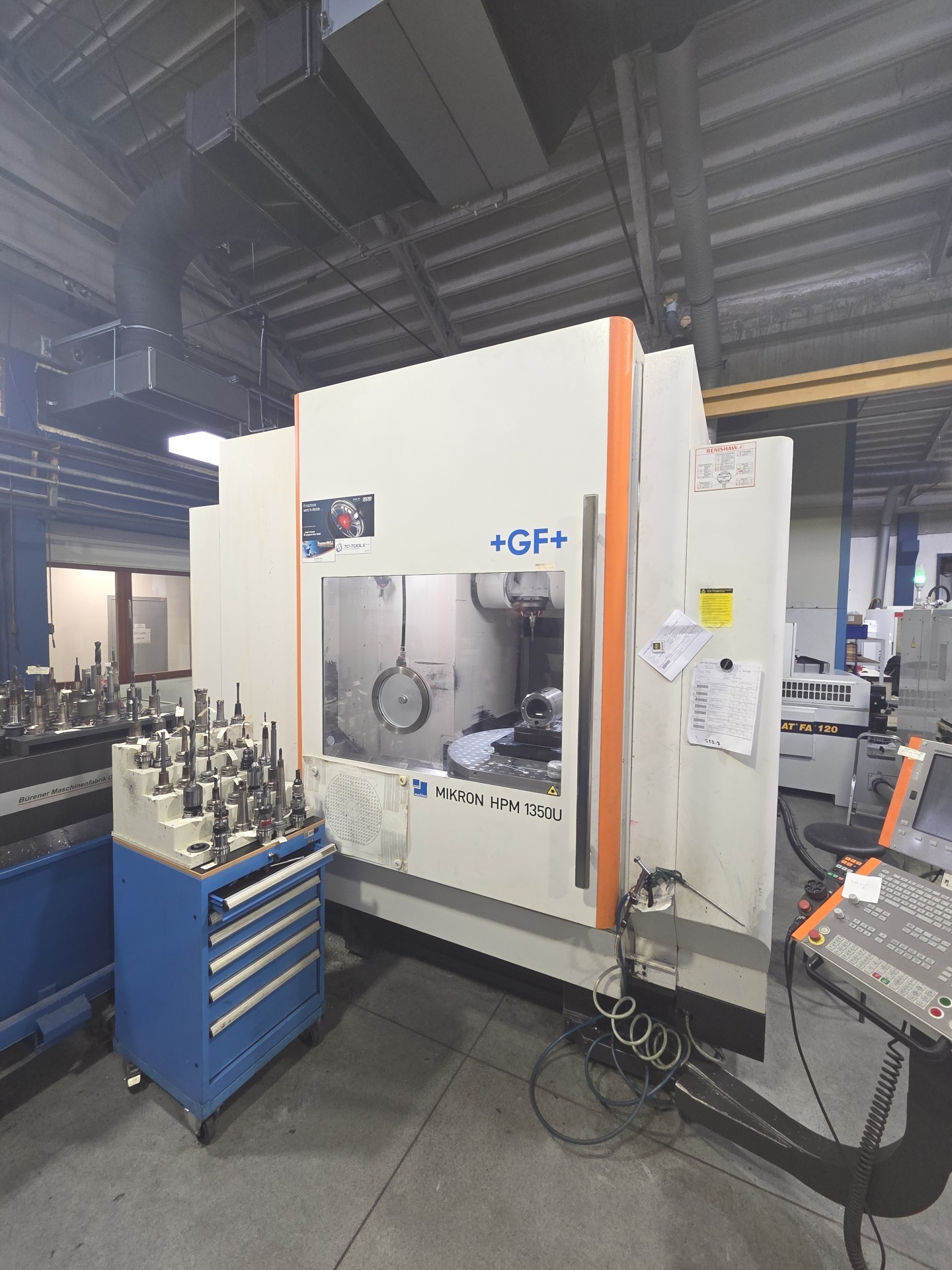

+GF+ MIKRON HPM 1350U (

Tech Specs

TECHNICAL DETAILS

Travel distance X-axis: 1,350 mm

Travel distance Y-axis: 1,150 mm

Travel distance Z-axis: 700 mm

Rapid traverse X-axis: 30 m/min

Rapid traverse Y-axis: 30 m/min

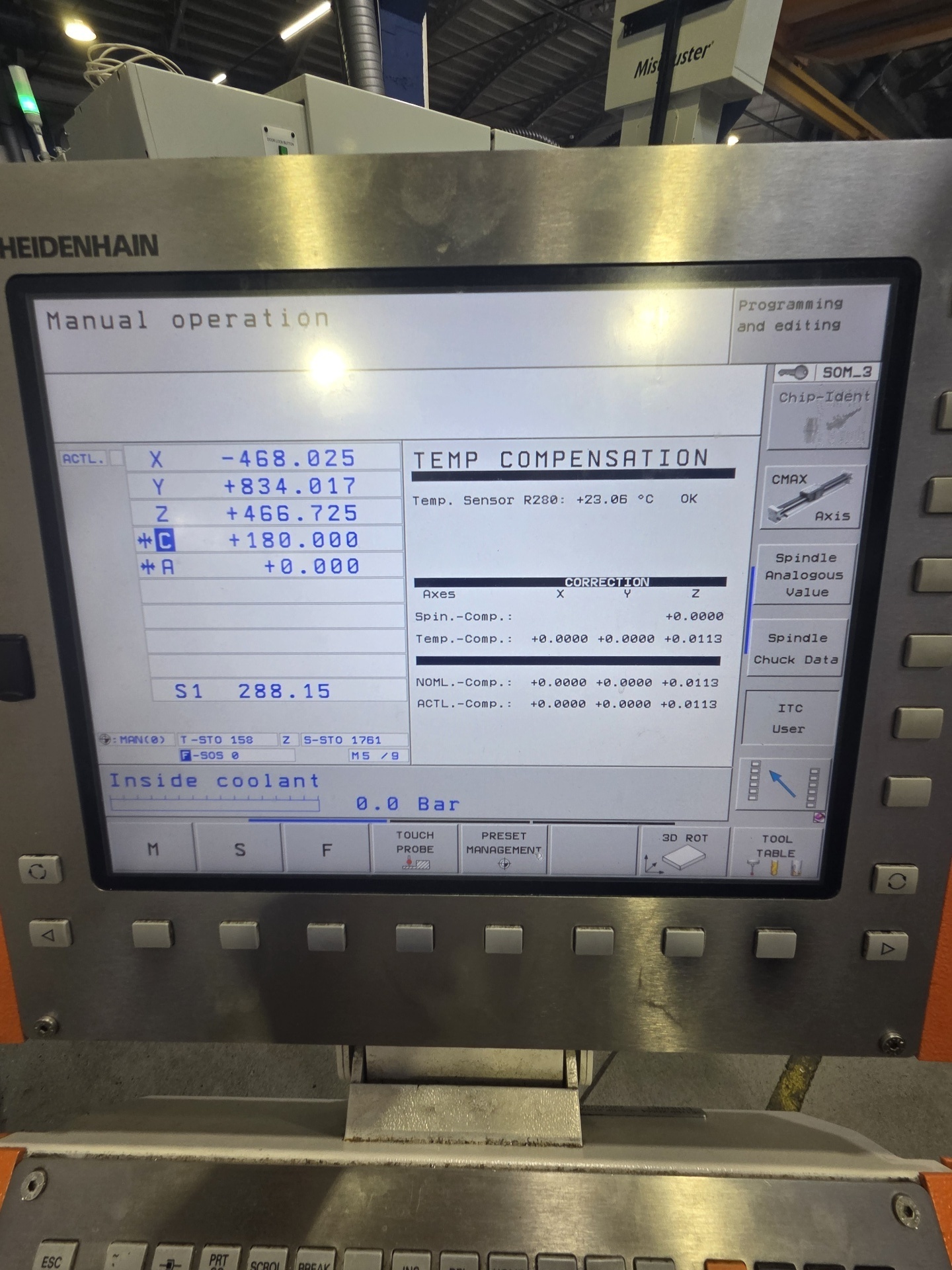

Controller model: iTNC 530

Workpiece weight (max.): 1,600 kg

Table load: 1,600 kg

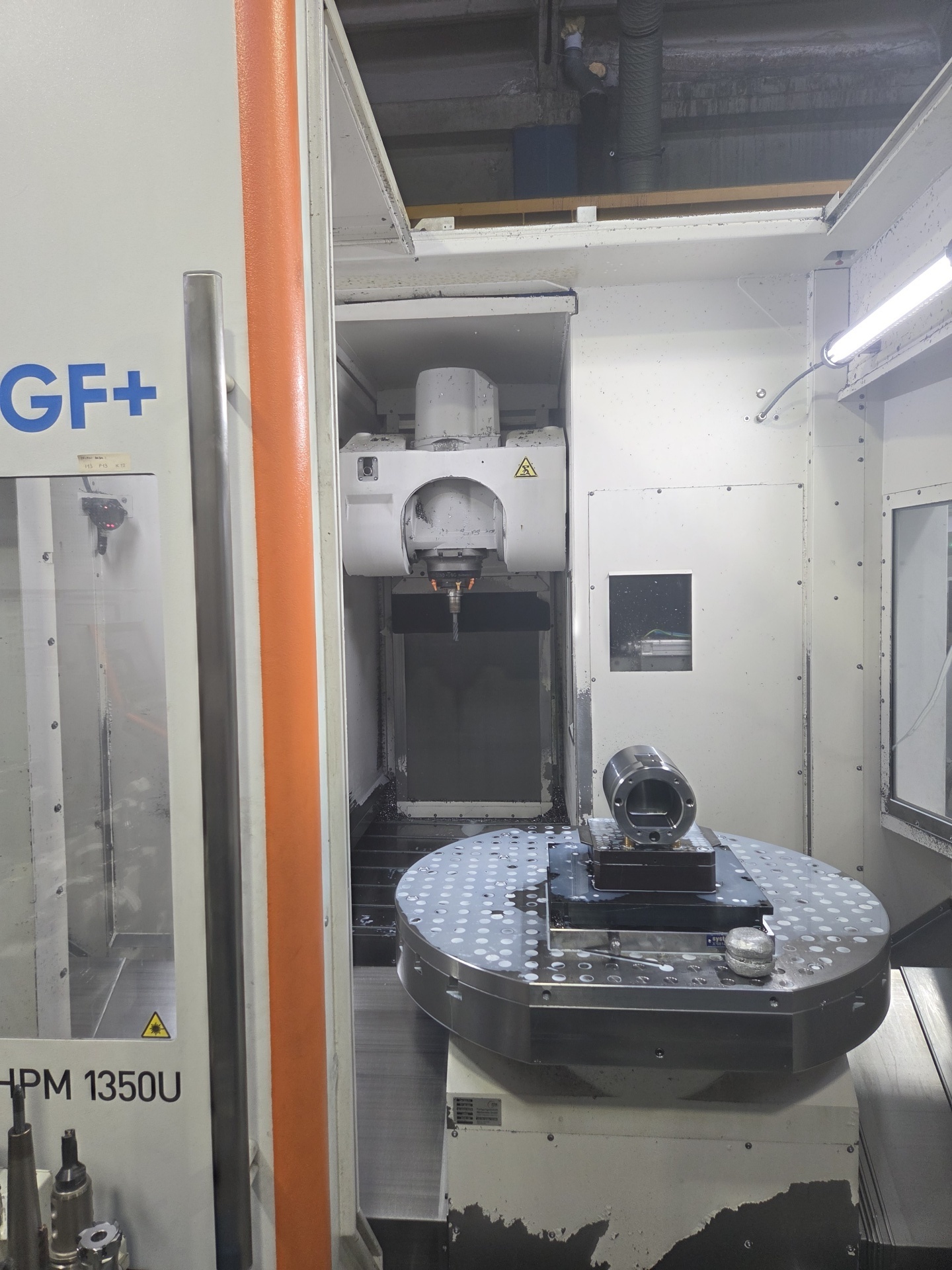

Rotary table diameter: 1,100 mm

Spindle speed (max.): 15,000 rpm

Operating hours of spindle: 11,000 h

Coolant supply: 80 bar

Number of slots in tool magazine: 30

The machine is regularly serviced with very few hours and also has a maintenance contract with an authorized service provider
