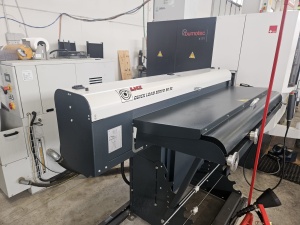

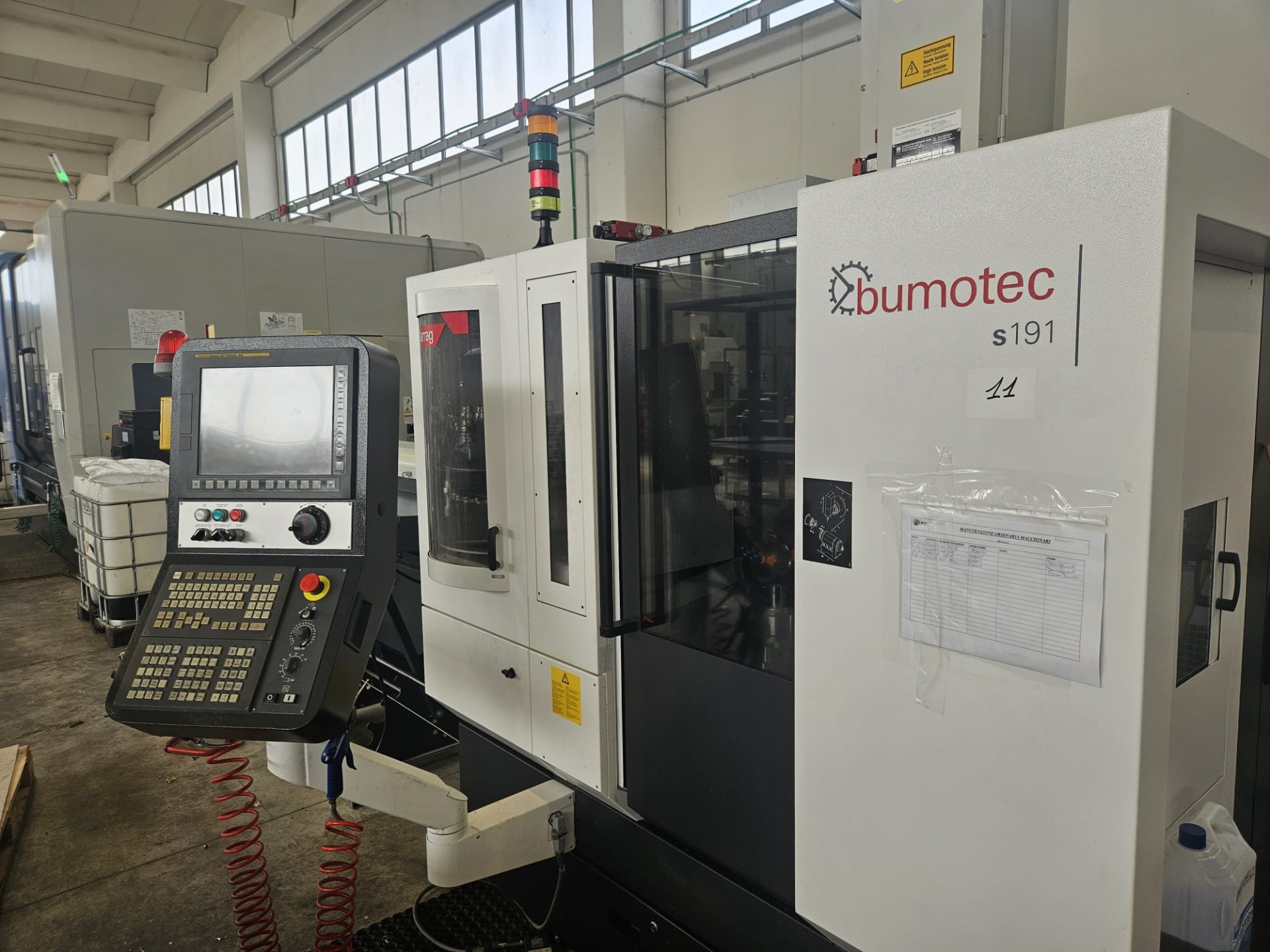

Токарно-фрезерный центр ЧПУ BUMOTEC s191 Б/У - Продам в Crucoli
Казахстан, Алма-Атинская обл., Алматы, ул. Политехническая, 2 офис 303
Детальное описание
General Data
Total installed power: 25 kVA
Power supply: 400V / 50 Hz
Weight (kg): 4200
Dimensions of Machine (LxWxH): 2200 x 1900 x 1990 mm
Control Unit

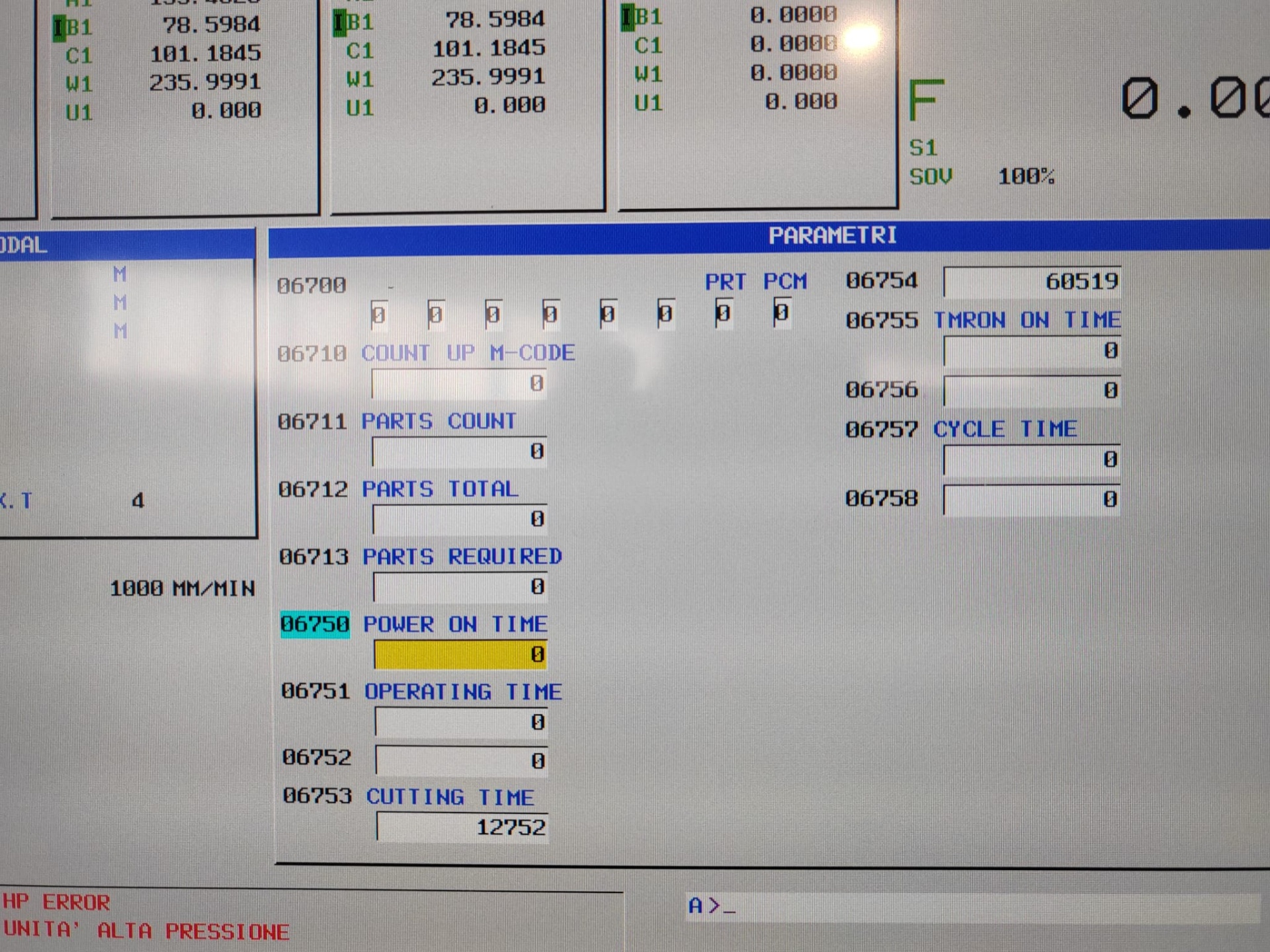

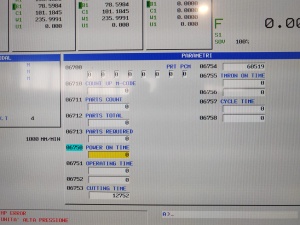

CNC: FANUC 31i
Display: 15” LCD screen
Ethernet + Data Server
TCPC 5-axis simultaneous machining
Controller
Main Drive
Movement
Travels X/Y/Z (mm): 410 / 200 / 400
Resolution: 0.1 µm
Measuring system: 10 nm optical scales
Rapid traverse X/Y/Z: 40 m/min
Acceleration: 8 m/s²
Workpiece
Table
Turret
Tail Stock
Tools

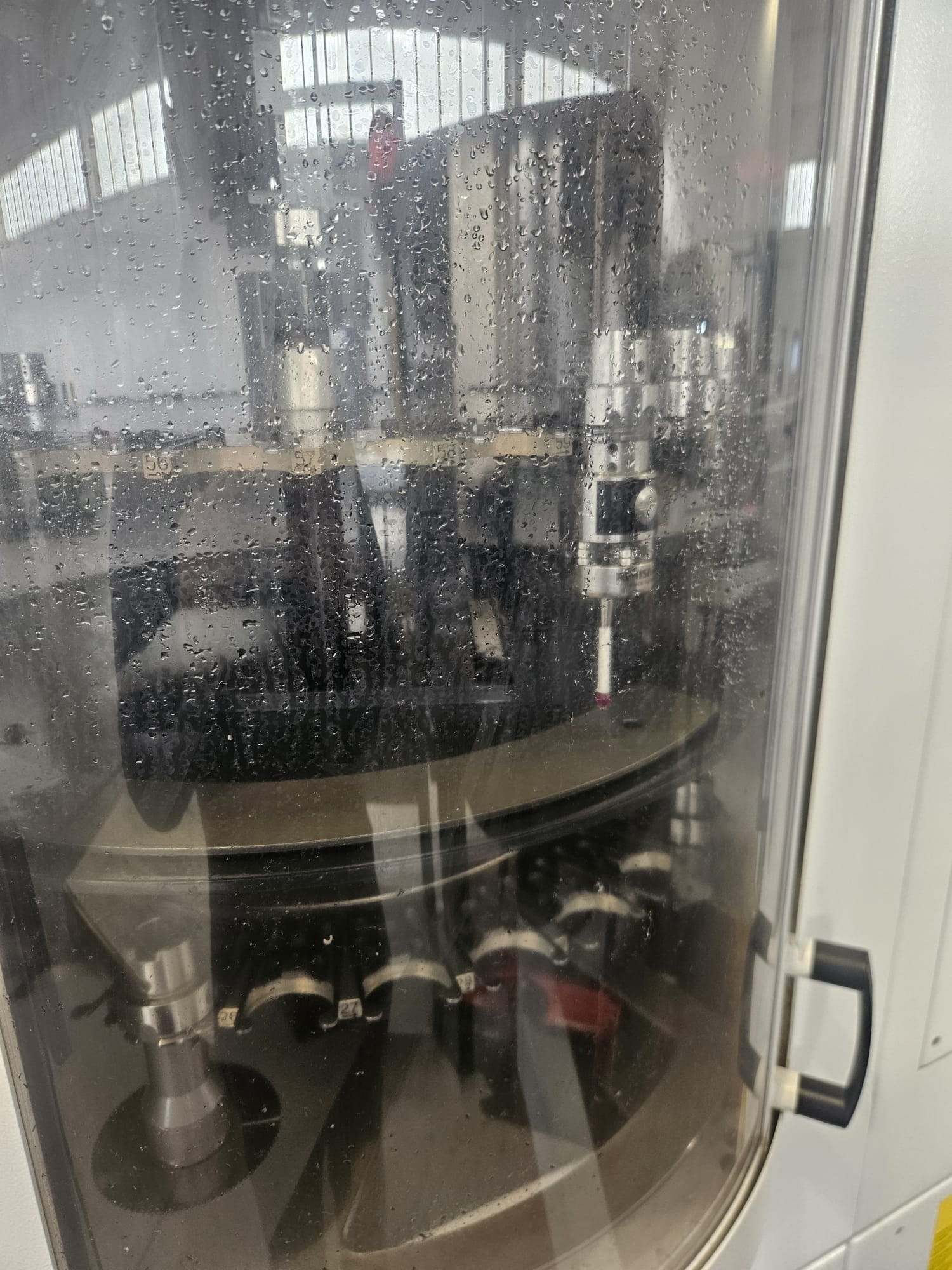

Tool Changer: 30 positions HSK 40
Tool change time: 1.2 s
Chip-to-chip time: 4.4 s
Max tool diameter: 40 mm
Max tool length: 150 mm
Max tool weight: 1.5 kg
Injection Unit
Clamping Force
Machine-Specific Data
Mount Position (Assembly)
Media
Additional Equipment
Machine History
Machine Benefits
Extra Information
