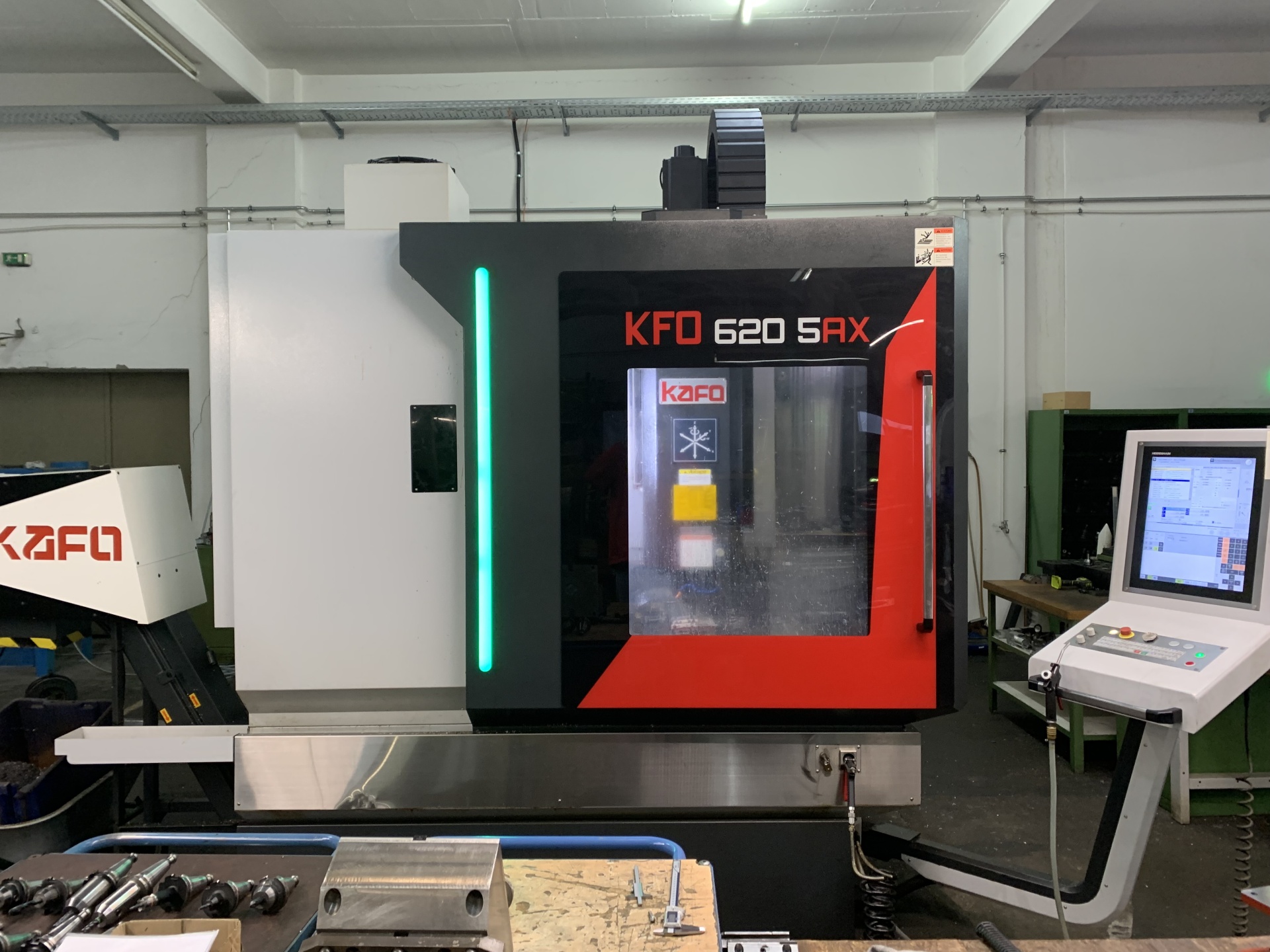

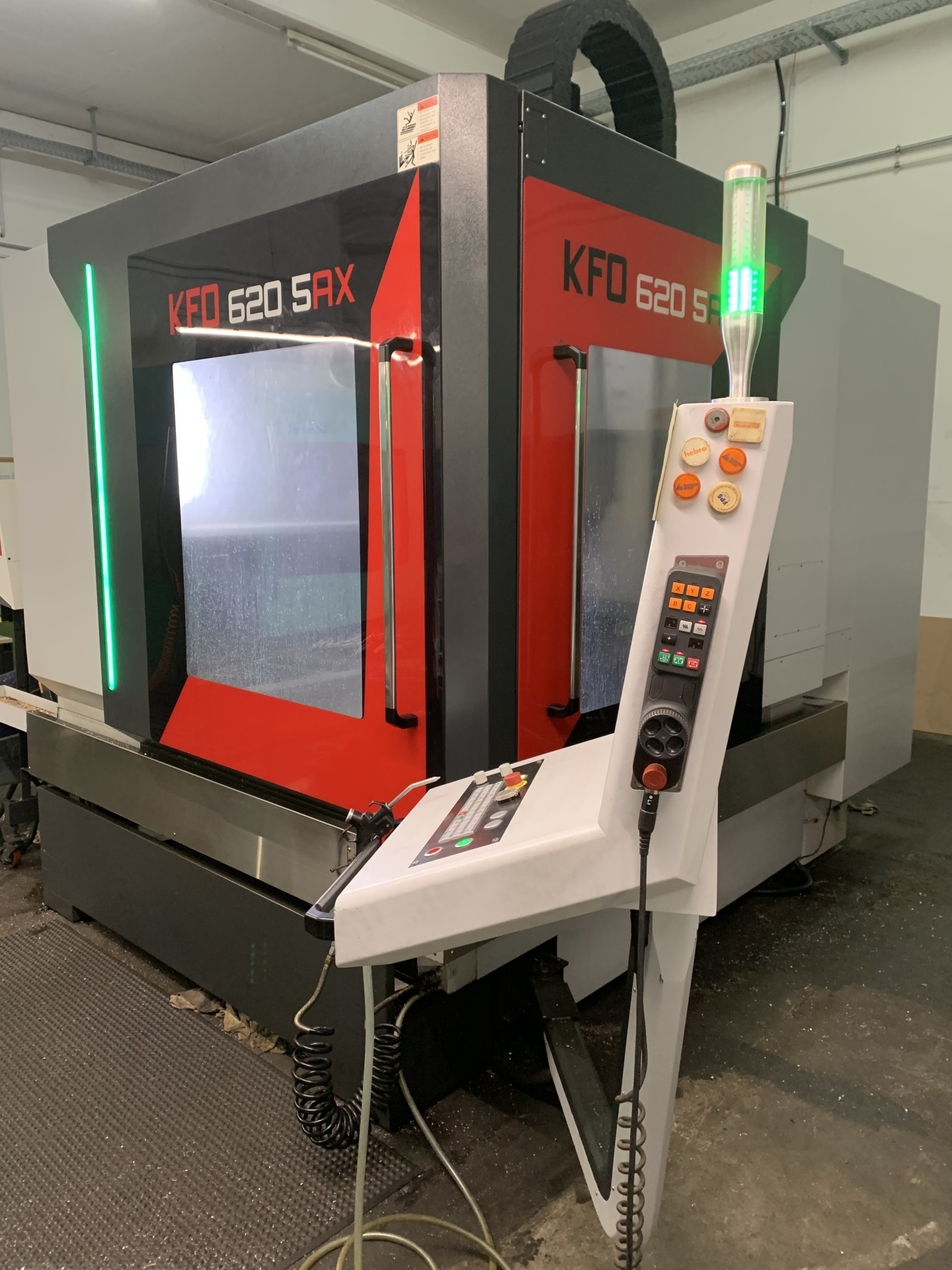

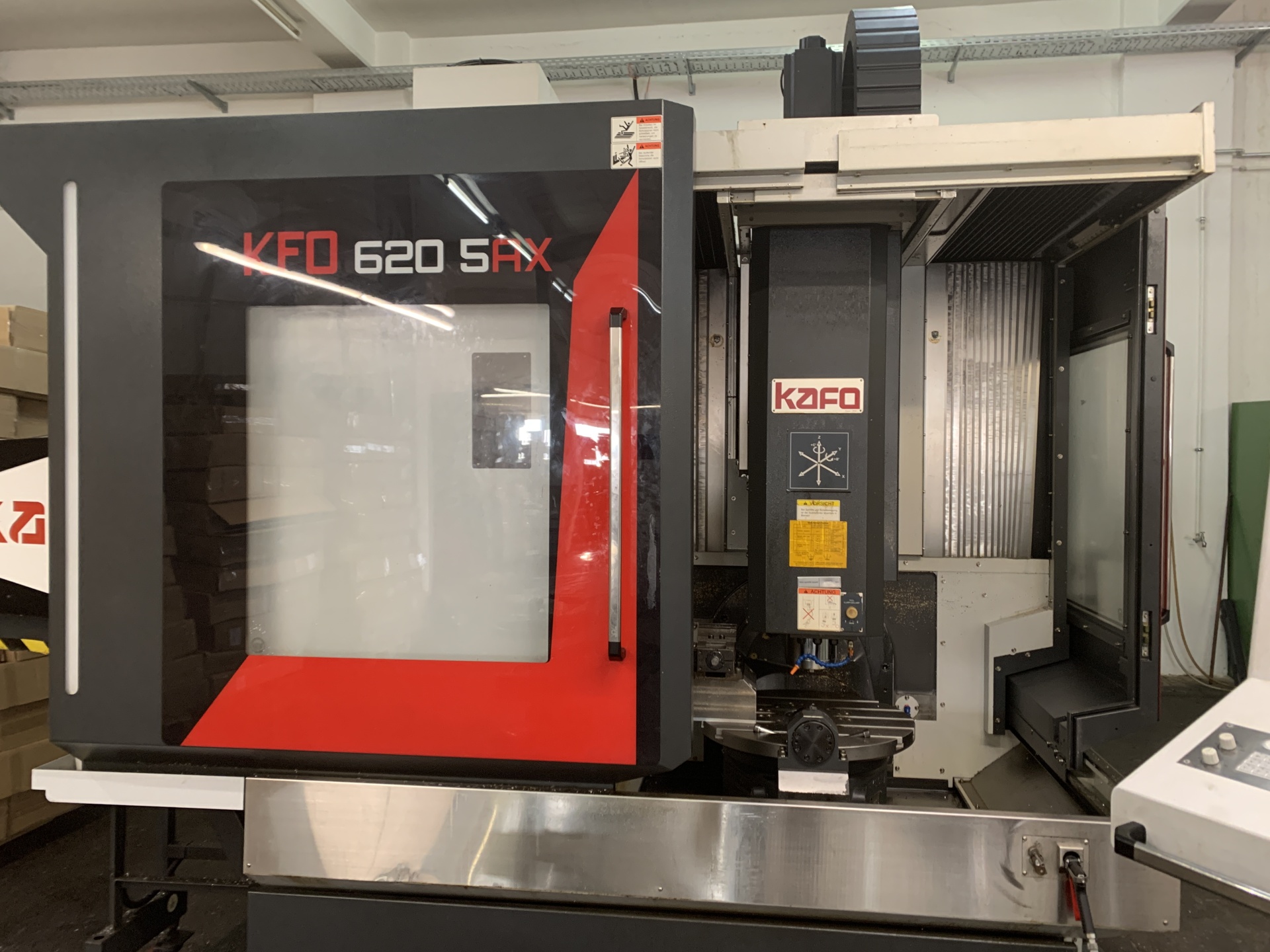

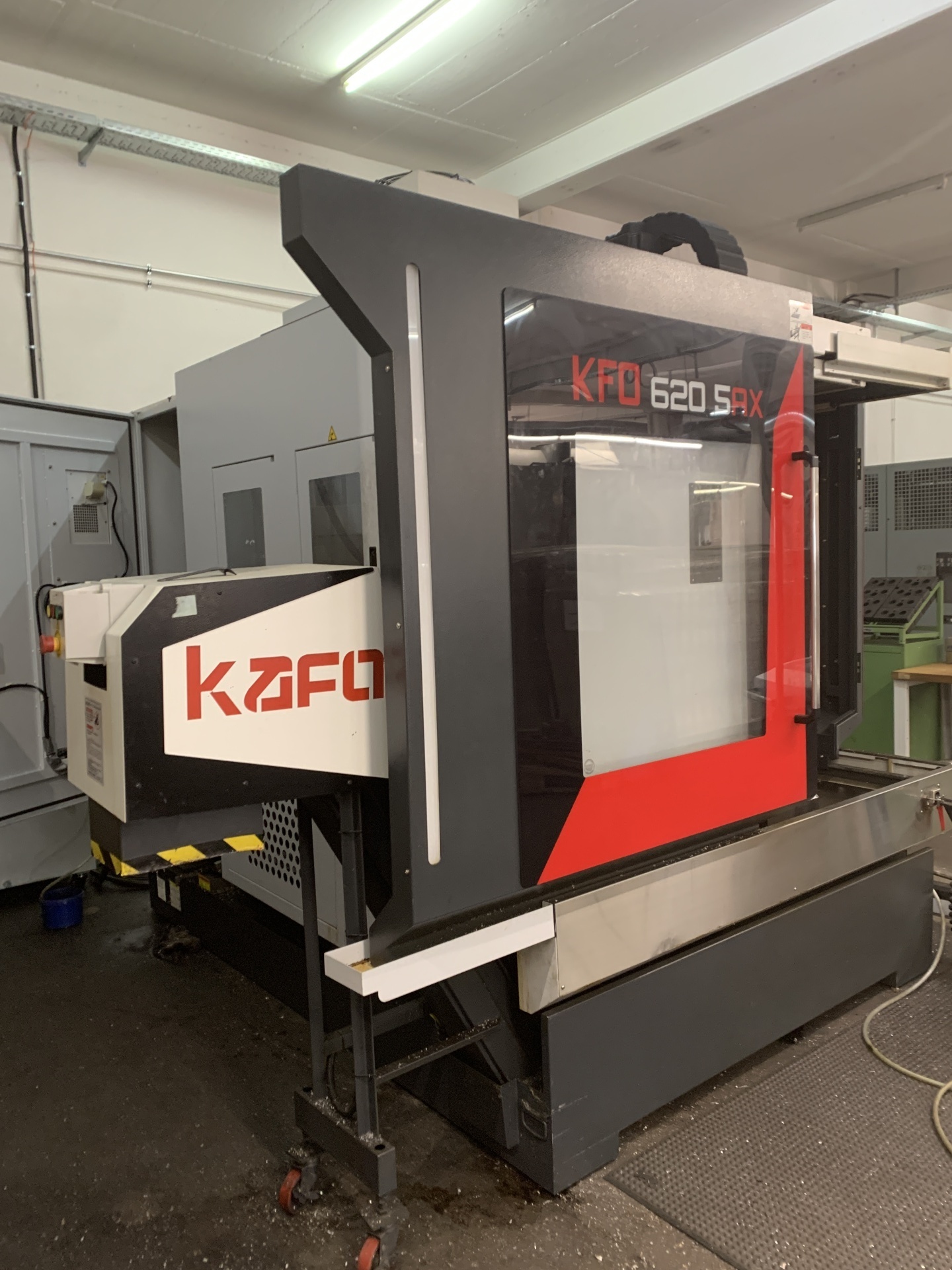

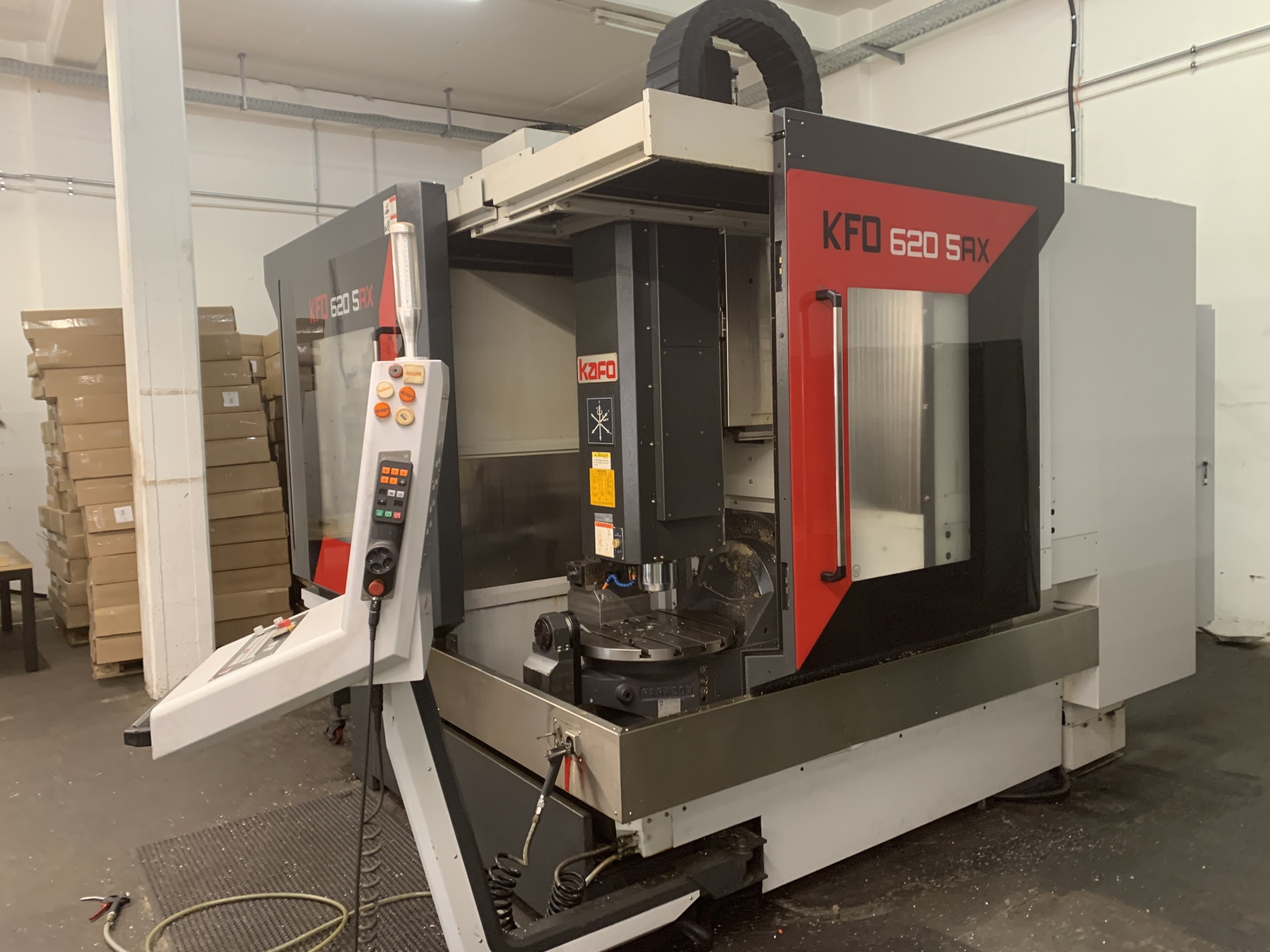

5 осевой обрабатывающий центр KAFO KFO 620 5AX Б/У - Продам в Altena

Axis 5

Tech Specs

X-axis travel: 620 mm

Y-axis travel: 520 mm

Z-axis travel: 460 mm

Control manufacturer: Heidenhain

Control model: iTNC 530

Total weight: 10,500 kg

Total length: 2,325 mm

Total width: 4,210 mm

Total height: 3,108 mm

Torque: 120 Nm

Workpiece height (max.): 330 mm

Workpiece weight (max.): 300 kg

Coolant supply 20 bar

Feed rate X-axis 10 m/min

Feed rate Y-axis 10 m/min

Feed rate Z-axis 10 m/min

Rated power

(apparent power) 45 kVA

Number of spindles 1

Rapid traverse Z-axis 36 m/min

Rapid traverse X-axis 36 m/min

Rapid traverse Y-axis 36 m/min

Diameter of the rotary table 650 mm

Speed (min.) 25 rpm

Spindle nose SK40

Spindle speed (max.) 12,000 rpm

Spindle speed (min.) 10 rpm

Table load 300 kg

Workpiece diameter (max.) 520 mm

Number of slots in the

tool magazine 24

Equipment: Documentation/manual, continuously adjustable speed,

Chip conveyor

- SK 40

- 24 magazine

- Handwheel

- Extractor

- Chip conveyor

- Signal light

- 12,000 rpm
