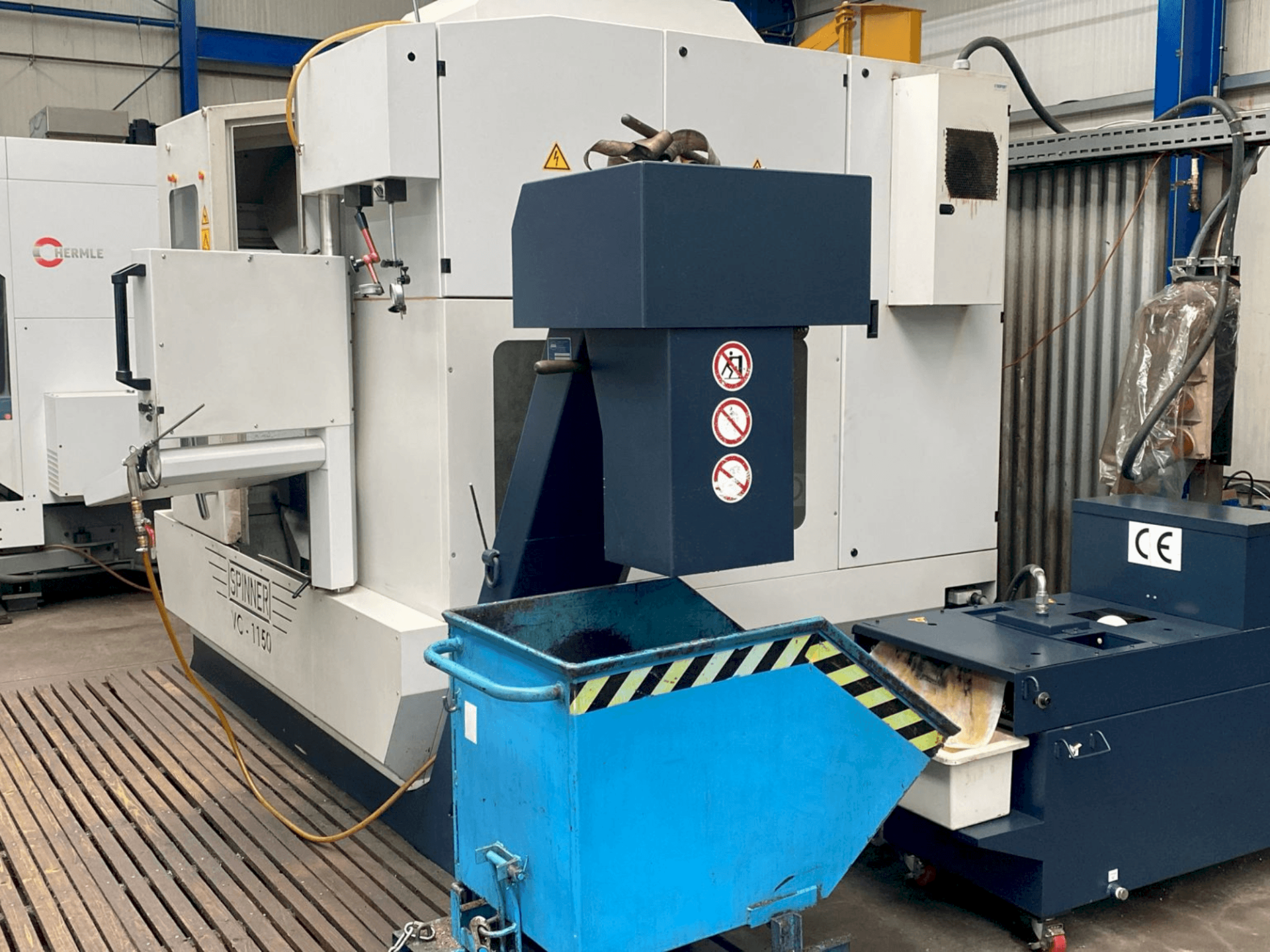

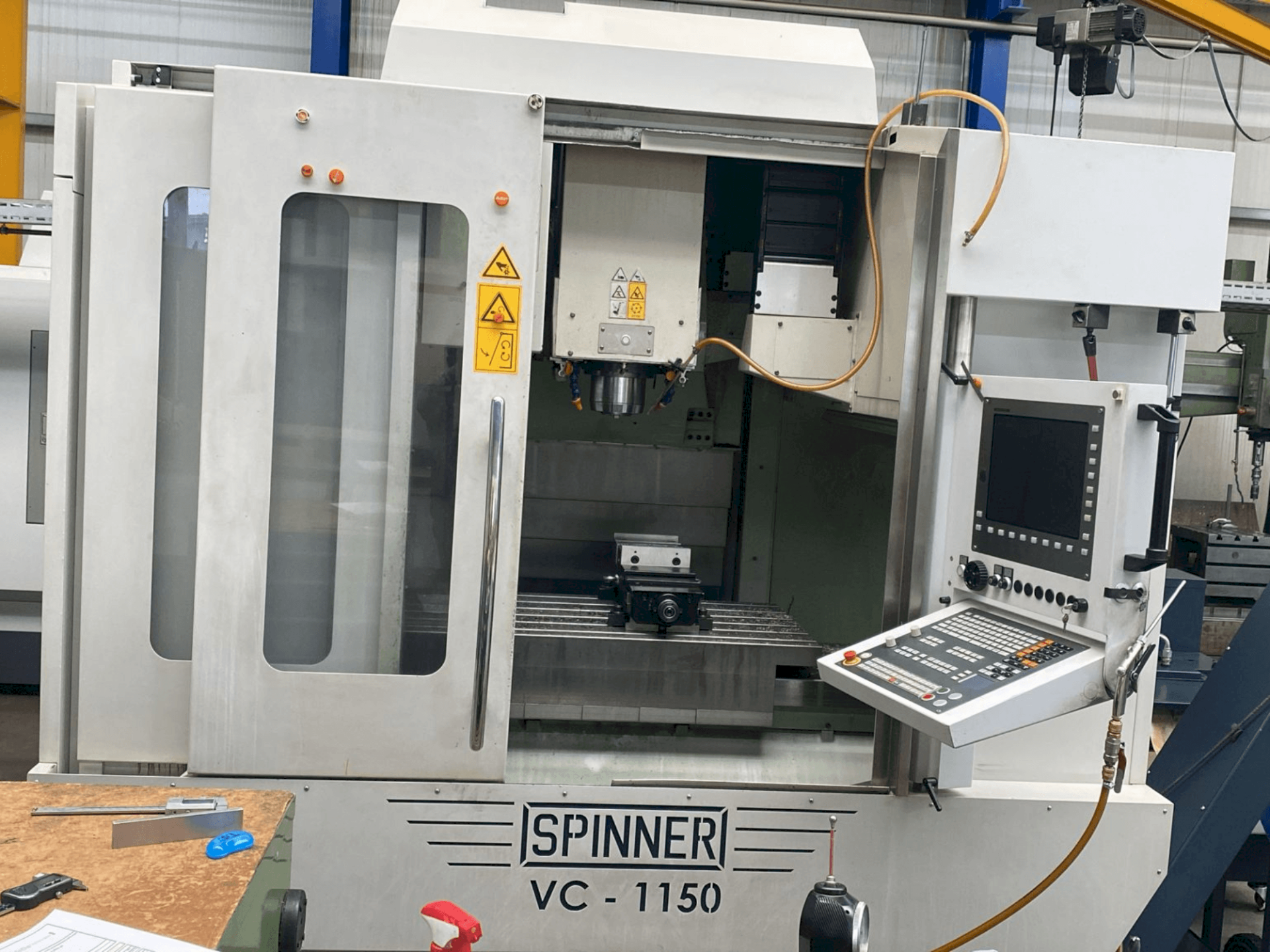

3-осевой вертикальный обрабатывающий центр SPINNER VC 1150 Б/У - Продам в Lebach

machine hours: 32 395h

spindle hours: 14 018h

Tech Specs

3 axis axis

Working area

X axis 1150 mm

Y axis 620 mm

Z axis 600 mm

Min. distance spindle nose - table 120 mm

Max. distance spindle nose - table 720 mm

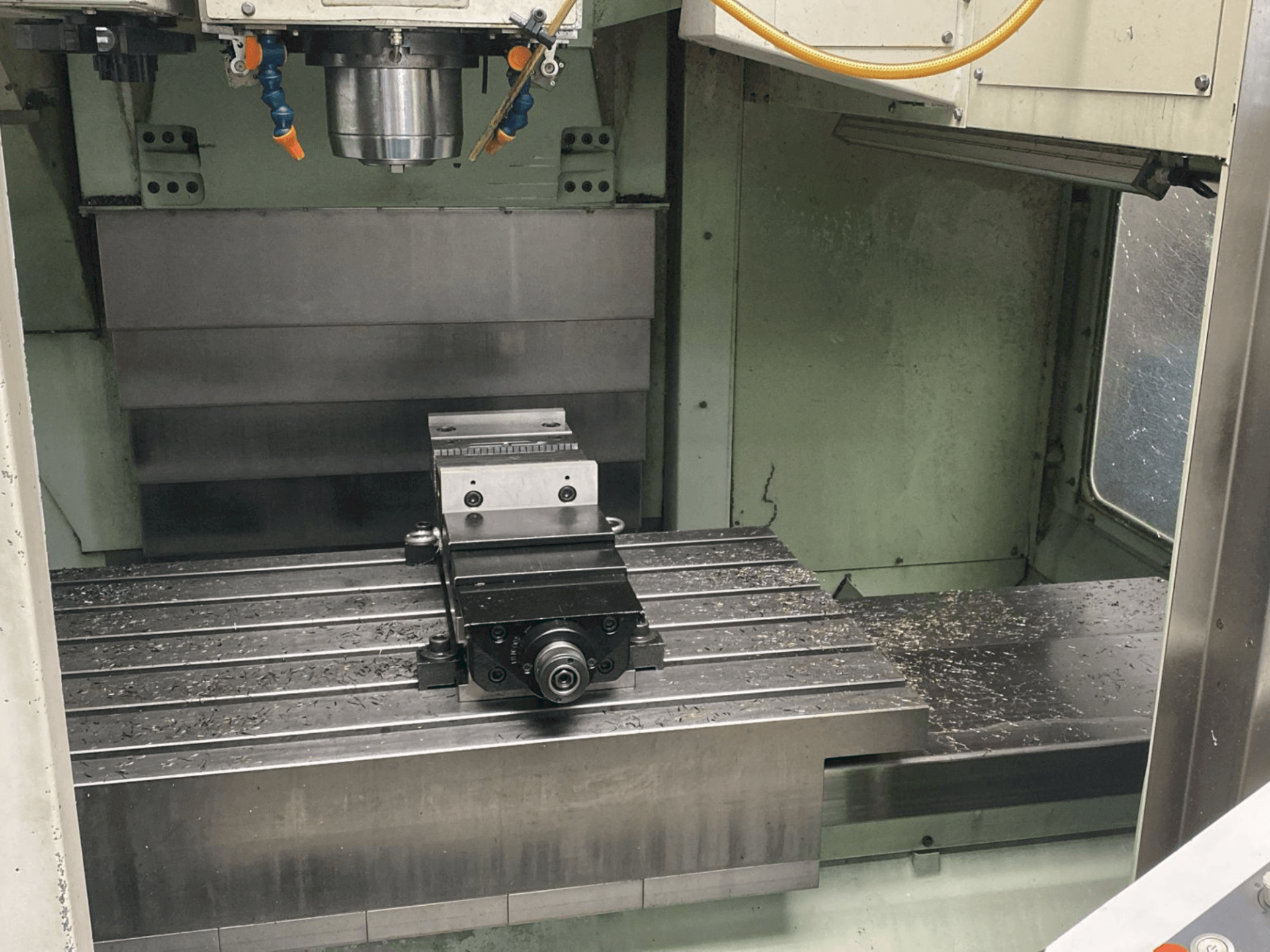

Machining table

Table dimensions 1400 x 620 mm

Max. table load 750 - 1500 kg

T slots 6x 18H7

Axes

Feed / Rapid traverse 48 m/min

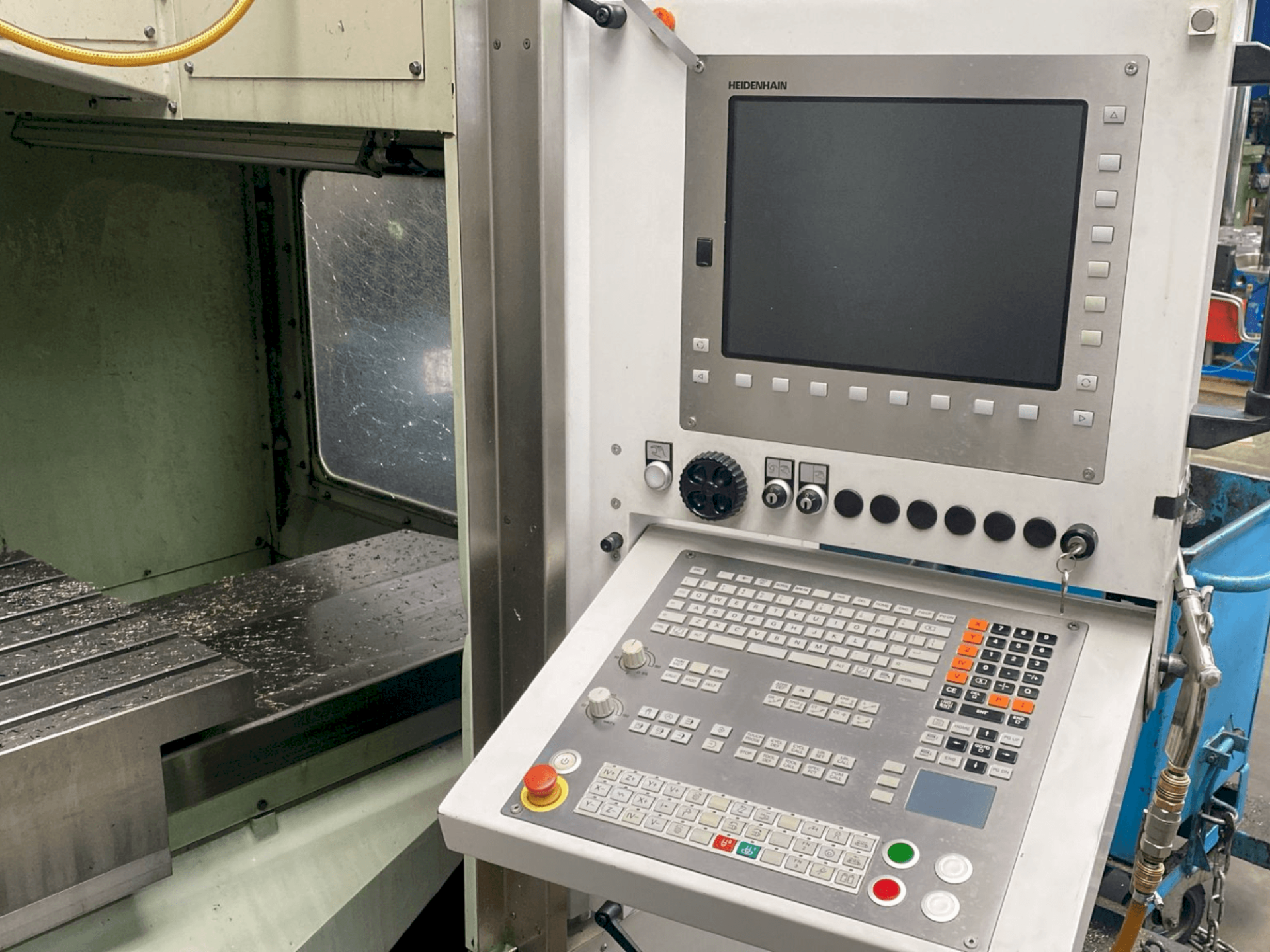

with Heidenhain TNC620 control and 15" color screen

Milling spindle up to 10,000 rpm

T: Nmax=200Nm; Pmax=29KW

Tool cone size 40 according to DIN 69871-A

clamping bolts according to DIN 69872-A

Blow-out device for spindle taper

High-speed automatic tool changer as double-arm changer for 32 tools

Linear guide in all
